ClientEvent Class

SourceCode.Workflow.Design Namespace : ClientEvent Class

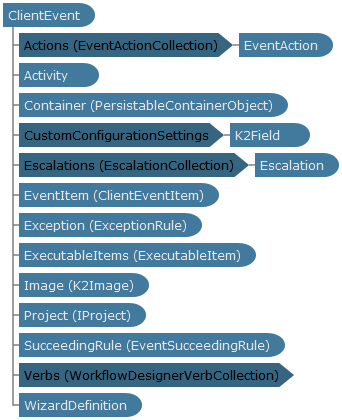

Object Model

Syntax

Visual Basic (Declaration)

<K2ImageAttribute()>
Public Class ClientEvent
   Inherits SourceCode.Workflow.Authoring.Event
   Implements SourceCode.Framework.INamedObject, SourceCode.Framework.ISupportDisplayName, SourceCode.Framework.ISupportName, SourceCode.Framework.IValidationContainer, SourceCode.Framework.IWizardConfigurable, SourceCode.Workflow.Authoring.IEvent, SourceCode.Workflow.Authoring.IExecutableItemContainer, SourceCode.Workflow.Authoring.IK2Object

Visual Basic (Usage)

Dim instance As ClientEvent

C#

[K2Image()]
public class ClientEvent : SourceCode.Workflow.Authoring.Event, SourceCode.Framework.INamedObject, SourceCode.Framework.ISupportDisplayName, SourceCode.Framework.ISupportName, SourceCode.Framework.IValidationContainer, SourceCode.Framework.IWizardConfigurable, SourceCode.Workflow.Authoring.IEvent, SourceCode.Workflow.Authoring.IExecutableItemContainer, SourceCode.Workflow.Authoring.IK2Object

C++/CLI

[K2Image()]
public ref class ClientEvent : public SourceCode.Workflow.Authoring.Event, SourceCode.Framework.INamedObject, SourceCode.Framework.ISupportDisplayName, SourceCode.Framework.ISupportName, SourceCode.Framework.IValidationContainer, SourceCode.Framework.IWizardConfigurable, SourceCode.Workflow.Authoring.IEvent, SourceCode.Workflow.Authoring.IExecutableItemContainer, SourceCode.Workflow.Authoring.IK2Object

Inheritance Hierarchy

System.Object
   SourceCode.Framework.PersistableObject
      SourceCode.Framework.PersistableContainerObject
         SourceCode.Framework.Design.NamedObject
            SourceCode.Workflow.Authoring.K2Object
               SourceCode.Workflow.Authoring.Event
                  SourceCode.Workflow.Design.ClientEvent
                     SourceCode.Workflow.Design.FormsGenerationEvent

Requirements

Target Platforms: Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2
