Service Types

Service Types are essentially "connectors" or "adapters" that allow K2 to interact with some underlying system and eventually expose that system as SmartObjects. A Service Type is used to allow K2 to integrate with a particular technology, while Service Instances are configured instances of a Service Type that connect to specific occurrences of that technology. Service Instances are essentially configured instances for a particular service type that point to s specific occurrence of a technology, and you can have multiple Service Instances for the same Service Type that are configured to connect to different systems. For example one instance of the SQL Server Service Type will be configured to interact with your HR database while another Service Instance of the SQL Server Service Type will be configured to interact with your Finance database. You must configure Service Instances before developers and designers will be able to create SmartObjects for that particular data store.

For more on Service Types, Services instances and the specific configuration for specific Service Types, please see SmartObject Services

It is possible to extend K2 by creating and registering custom Service Types that allow K2 to integrate with a technology not supported out of the Box.

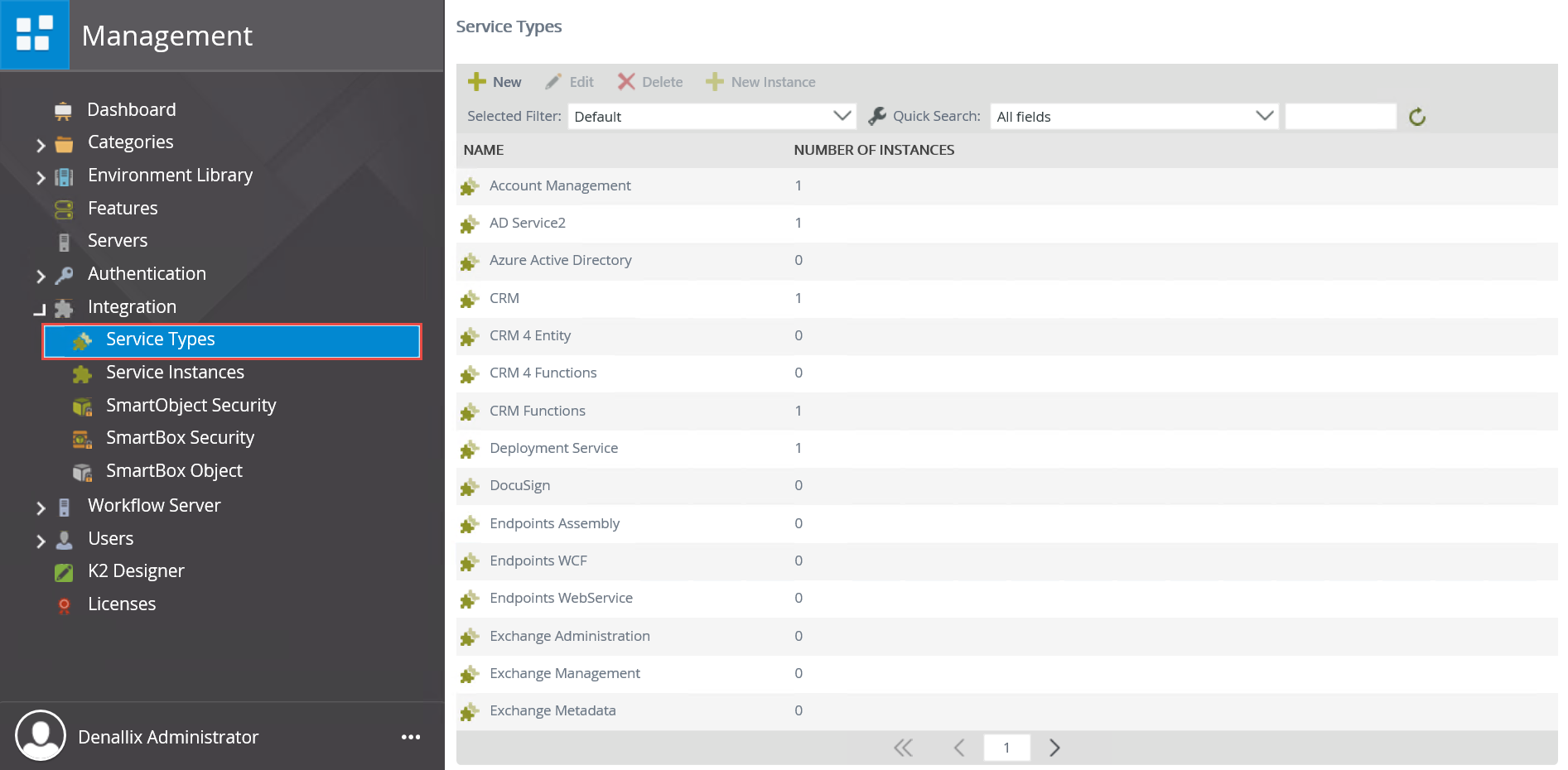

Clicking on Service Types returns a list of all the registered Service Types and number of instances per Service Type in your environment. From the Service Types screen, you can register a new Service Type with the K2 environment and create a new instance for a Service Type.


Follow these steps to register a new Service Type in your K2 environment.

In a multi-server Farm environment, ensure that the underlying assembly (and dependencies) have been copied to each physical K2 server before you register a Service Type. While you only need to register a Service Type with a K2 environment once, the actual assembly must be copied to each physical K2 server in that environment.

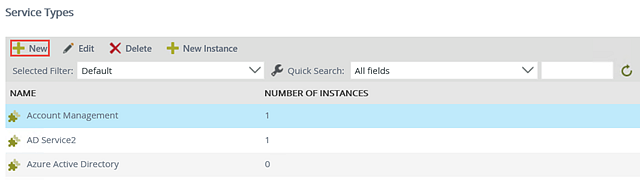

  1. Click New in the Service Type section.

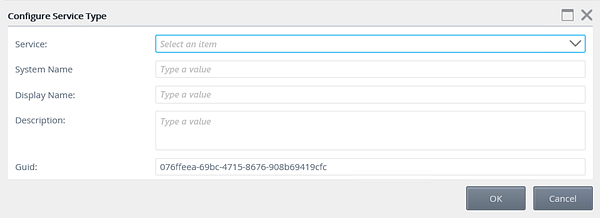

  2. The Configure Service Type page opens.
    FieldDescription
    Service

    Select the service type to register.

    The list of names are based on .NET Reflection, where K2 will iterate over assemblies in the ServiceBroker directory on the K2 server (default: [Program Files (x86)]\K2 blackpearl\ServiceBroker) and return those assemblies that implement the necessary Service Broker/Type Interfaces
    System NameSpecify a System Name for the new Service Type.
    Display NameEnter a Display Name for the new Service Type.
    DescriptionEnter a description for the new Service Type
    GuidAn axiomatically-generated GUID for the new Service Type.
  3. Click OK

Follow these steps to edit a Service Type.

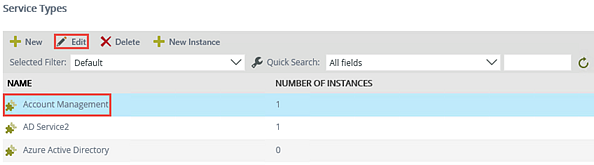

  1. Select a Service Type from the list and click Edit.
  2. The Configure Service Type page opens. Edit the values as necessary, using the table in Registering a Service Type as a guide.
  3. Update fields as required, and click OK.

Follow these steps to delete a Service Type.

Take care when deleting Service Types and Services Instances since doing so may break applications that rely on those Service Types or Service Instances.

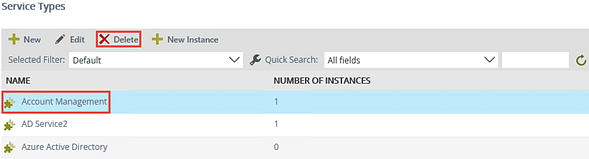

  1. Select a Service Type and click Delete.
  2. The Delete dialog opens. Click OK to confirm you wish to delete the Service Type.
  3. Click OK.

Follow these steps to create a new Service Instance for a Service Type:

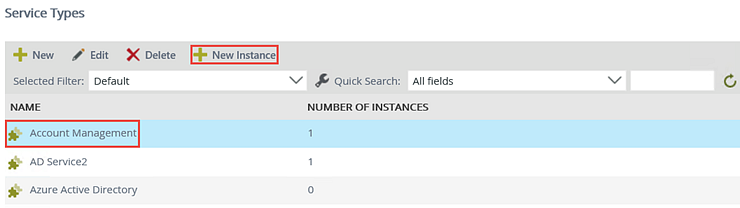

  1. Click on the Service Type you want to create a new instance for.
  2. The New Instance button becomes available.
  3. Click New Instance. The Configure Service Instance page opens.

    Use the table below as a guideline to configure the new service instance:

    SectionFieldWhat to do
    Service InstanceDisplay NameType a value for the display name of the new service instance.
    Service InstanceDescriptionType a value to describe the new service instance.
    Service InstanceService TypeThe Service Type selected from the previous view will display. You can select a different Service Type from the drop-down if needed.
    Service AuthenticationAuthentication Mode

    Select the Authentication Mode to be used for this service instance from the drop-down. This setting determines the security credentials that will be used to connect to the underlying system. See the topic Authentication Modes for more information.

    Not all Authentication Modes are supported for all Service Types. Refer to the Service Type documentation for the particular Service Type you wish to configure to see what known Authentication Mode restrictions may exist.
    • Impersonate: passes the connected user's credentials to the underlying system
    • OAuth: uses OAuth tokens to authenticate with the underlying system. This setting requires a configured OAuth resource for the underlying system.
    • ServiceAccount: connects to the underlying system using the credentials of the account that runs the K2 application service
    • SSO: uses cached Single Sign-On credentials for the connected user. This setting will require you to select a Security Provider that will map an incoming user's credentials to alternate credentials that are accepted by the underlying system.
    • Static: use a static username and password to connect to the underlying system
    Service AuthenticationSecurity ProviderThe Security Provider drop-down will be enabled when the single sign on (SSO) Authentication Mode was selected. Select the security provider to be used from the drop-down.
    Service AuthenticationOAuth Resource NameThis drop-down will be enabled when the OAuth Authentication Mode was selected. Select the OAuth resource name to be used from the drop-down.(The Resource is defined using the Authentication section of the K2 management site.)
    Service AuthenticationOAuth Resource AudienceEnter the OAuth Resource Audience URI to use for OAuth Authentication. This setting is only applicable when using the OAuth Authentication Mode, and refers to the URI used to access a realm, for example https://graph.windows.net
    Service AuthenticationUser NameThis field will be enabled when the Static Authentication Mode was selected. Type the name of the user to be used when connecting to the underlying system.
    Service AuthenticationPasswordThis field will be enabled when the Static Authentication Mode was selected. Type the password of the user entered in the User Name field.
    Service AuthenticationExtraType a value for extra connection information. This setting is usually not required unless the authentication mechanism or Service Type selected requires or allows additional configuration.
    Service AuthenticationEnforce ImpersonationThis is a Pass-through Authentication option and is only applicable for the Impersonate and OAuth Authentication Modes. If Enforce Impersonation is not checked and Pass-through Authentication fails for the impersonated user, the service will revert to the K2 Service Account and retry the operation. If Enforce Impersonation is checked, the service will not revert to the Service Account if it fails with the impersonated user.
    Service Keys(The Service Keys depends on the Service Type selected).

    Provide the configuration settings that are required or optional for the particular Service Type you are configuring. See SmartObject Services for the more information on the configuration values for each Service Type.

    SmartObjectsGenerate SmartObjects for this Service InstanceSelect the check box if you want to automatically generate SmartObjects for the new Service Instance. (Whether this check box is selected or not, designers can still create SmartObjects for the underlying system manually using K2 Design tools).
  4. Click OK to register the new Service Instance after providing the necessary values. It may take a few seconds for this operation to complete, since K2 may be performing discovery operations against a large set of entities, and/or generating and publishing SmartObjects, if the Generate SmartObjects option was selected.
