Verification that Run As is working
Verifying that Run As is working as expected and is retrieving the specified credentials correctly can be done easily be creating a simple process with one server event and a few lines of code. All the example will illustrate is the following for a design time scenario:
- Create a server event based process
- Specify the alternative set of credentials
- Enter the lines of code to retrieve the credentials
- Utilize the console to verify the runtime operation of Run As
To create a simple process with a server event, do the following:
 |
Launch K2 designer for Visual Studio |
 |
Start a new K2 project, with the name K2 Run As Test |
 |

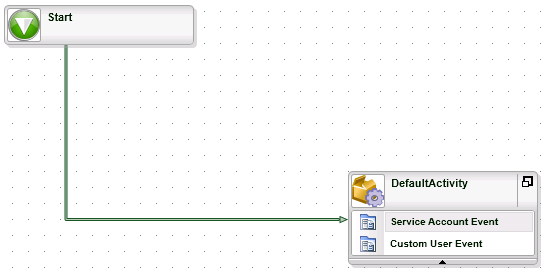

Add one server event to the design canvas, and connect the Start Activity to the Server Activity using a line rule |
| Expected Result: |
Expected Result  |
Change the server event credentials
|
Locate the Service Account Event Template |
|

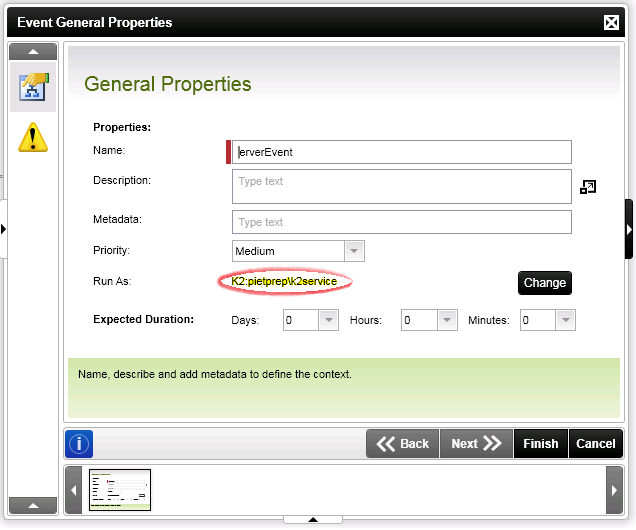

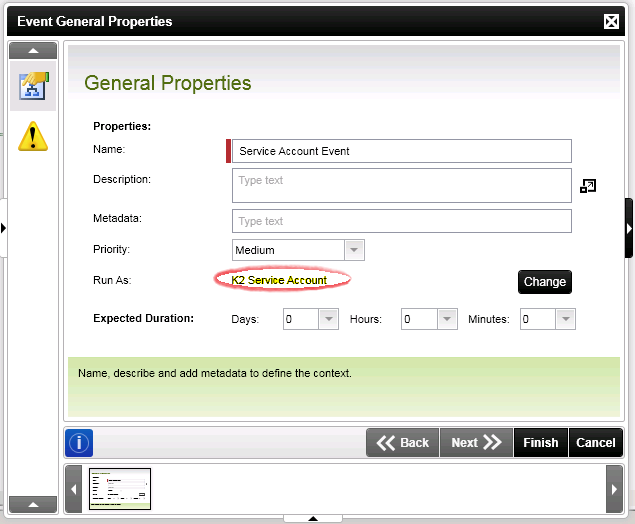

Run the template and amend the credentials by clicking on the Change button Existing K2 Server Service Account Credentials  |
|
Specified Credentials, which is also a service account but not the K2 Server Service Account: New, specified credentials
|
Add the server event code
The following lines of code must be added to the two server events. The code will perform the simple task of extracting the credentials used to run the Server Event.
| Server Code Example |
Copy Code
|
|---|---|
| Console.WriteLine("-------------------------------------------"); Console.WriteLine(WindowsIdentity.GetCurrent().Name); Console.WriteLine("-------------------------------------------"); |
|

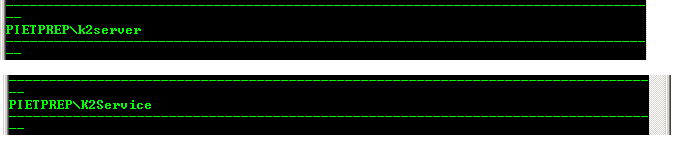

Console Line Results
Shown in the images below, are the results from running a published version of the process in console mode. To achieve a similar result, the Developer would need to do the following:
- Publish the process
- Restart the K2 Server in console mode
- Instantiate an instance of the process and monitor the result via the console
