21. Add a Task Step for Finance Processing

In this step, you will add and configure the finance processing steps. After the approvers approve the claim, it's sent to finance for processing. In the real world, this may be a Finance dept staff member or even a Human Resources employee. First, you will add a Task step and assign it to the Expense Claim Processors group that you created in SharePoint. You will update the status, then send an email back to the originator to let them know their claim submittal is complete.

  1. Add a Task to the workflow below the Send Email Approved step. Connect the two steps. Configure the Task step as follows:
    • Instructions: Please process the expense claim.
    • Actions: Processed, Rejected
    • Form: SmartForm > Display Expense Claim
      • References: Keep default settings
      • Open Task: Help me configure it
      • Workflow View: Use an existing State: Workflow Task
      • Open Task Rule Action: Keep default settings
      • After submit: Keep default settings
      • Summary: Save and Finish
    • Recipients: Click Originator, then Browse and search for the Expense Claim Processing group you created in SharePoint. If you cannot see the processing group, use the default value, Originator.
    • Email Alert: Customize the task notification email. Enter your own content.
    • Properties: Rename the step: Finance Processing
    1. From the Toolbox > Basic node, drag a Task step below the Send Email Approved step. Connect the two steps.

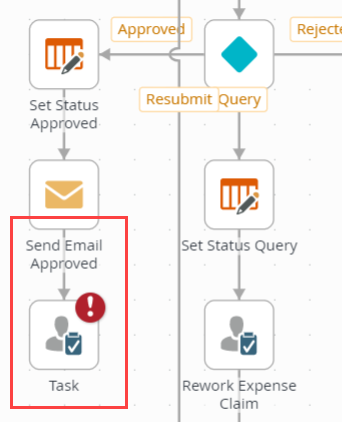

      Adding a Task Step
    2. Select the Task step, then expand the Configuration Panel. Click the Task tab. For the INSTRUCTIONS, enter
      Please process this expense claim.
      Then add two actions:
      Processed
      Finance Rejected

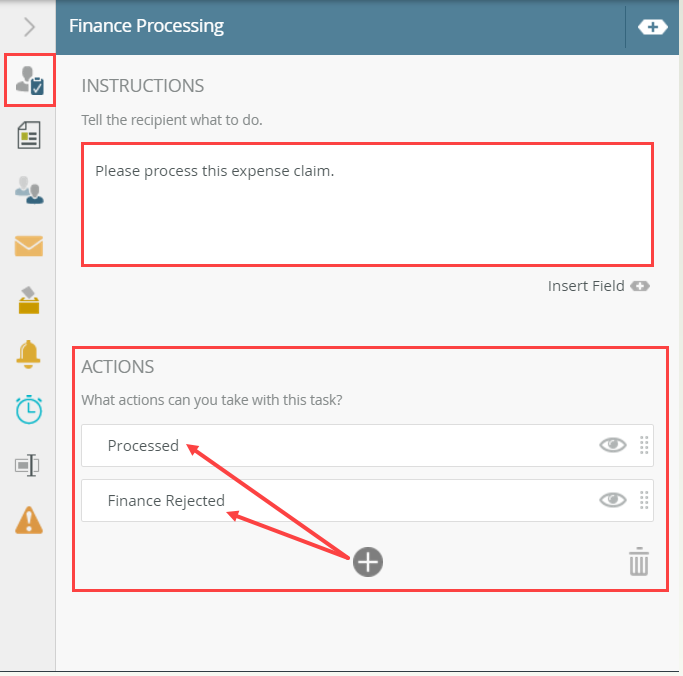

      Configuring Task Actions
    3. Click the Form tab. For the FORM TYPE, select SmartForm. For the FORM, browse to and select the Display Expense Claim form. Click OK.

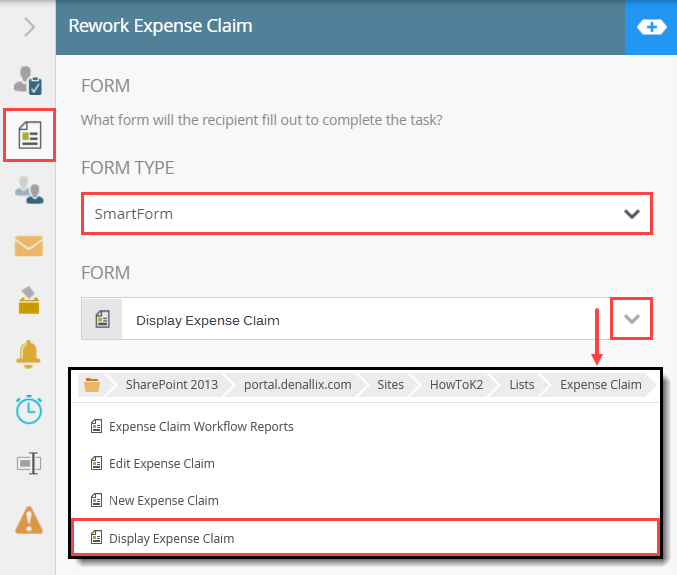

      Selecting the Edit Expense Claim Form

    The Open Task on a Form wizard launches.

    1. On the REFERENCES screen, it should indicate references have already been found and there are no new suggestions. (The number of references may be different in your environment. It is OK to continue.) Click NEXT.
      Open Task on a Form: References
    2. On the OPEN TASK screen, select Help me configure it, then click NEXT.

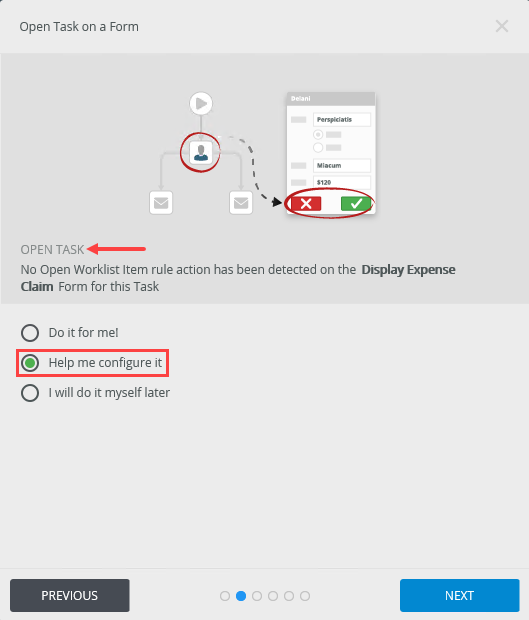

      Help Me Configure It
    3. On the WORKFLOW VIEW screen, select Use an existing State, then select the Workflow Task state. Click NEXT.
      Workflow Task View
    4. There are no changes to the OPEN TASK RULE ACTION settings, click NEXT.
    5. There are no changes to the AFTER SUBMIT ACTION settings, click NEXT.
    6. Review the Summary settings, then click SAVE AND FINISH. When you see the success check, click OK.
    7. Next, you will configure the recipient, or the person or groups responsible for completing this task.

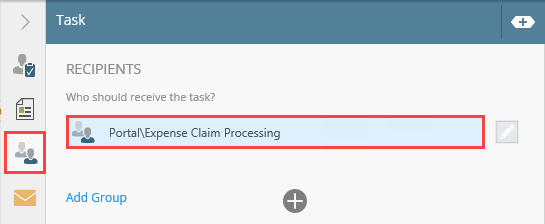

      Click the Recipients tab. You will assign this task to the Expense Claim Processing group that you created in SharePoint. Click the default Originator value to expose the drop-down menu, then select Browse.

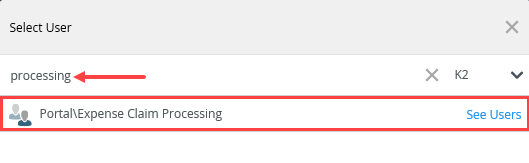

    8. On the Select User page, search for
      processing
      then select the Expense Claim Processing group and click OK. (If you do not see the processing group, you can use the default Originator value.)

    9. Click the Email Alert tab. CHECK the Customize Notification box. For the Subject line, enter
      Expense claim ready for processing
    10. Customize the BODY with any content you choose. Use references from the Context Browser to personalize the message. Be sure to keep the references from the default template in the email.

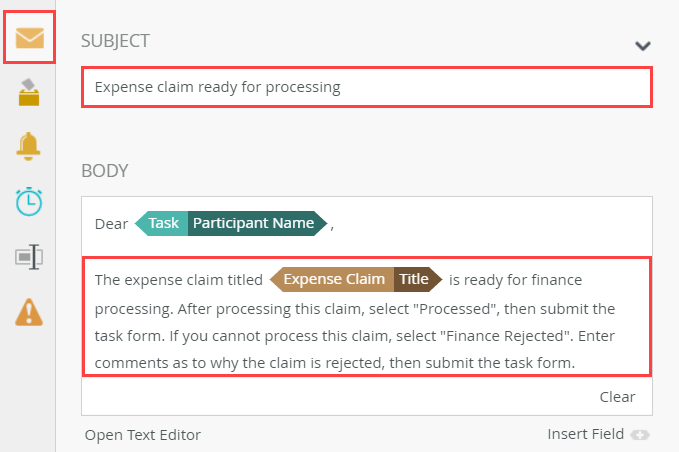

      Customizing an Email with Context Browser Properties
    11. Click the Properties tab. Change the name of the step to
      Finance Processing
      then collapse the Configuration Panel.

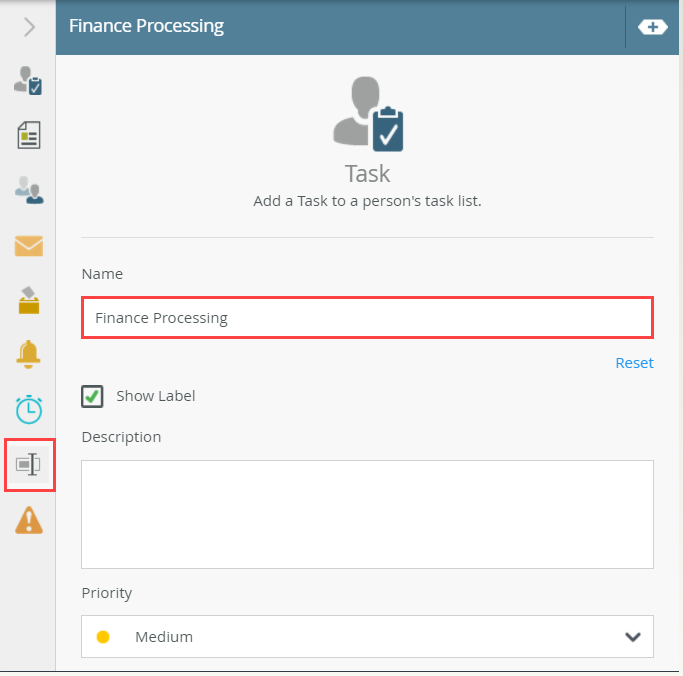

      Changing a Step Name
  2. Add a Decision step and connect it to the Finance Processing step.
    1. From the Toolbox > Logic node, drag a Decision step below the Finance Processing step. Connect the two steps.
  3. Next, update the status for the rejected outcome. Copy and paste the Set Status Submitted step. Align and connect the step to the Finance Rejected outcome. Edit the step. Change the Status value to Finance Rejected, then rename the step Set Status Finance Rejected.
    1. Once again, you will reuse an existing step to update the status column. Select the Set Status Submitted step. Copy, then paste the step. Drag the step so that it aligns with the Finance Rejected outcome. Connect the outcome to the step.

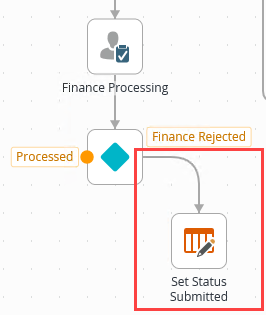

      Update List Item StepX
    2. Edit the duplicated Set Status Submitted step. Change the Status value to
      Finance Rejected.

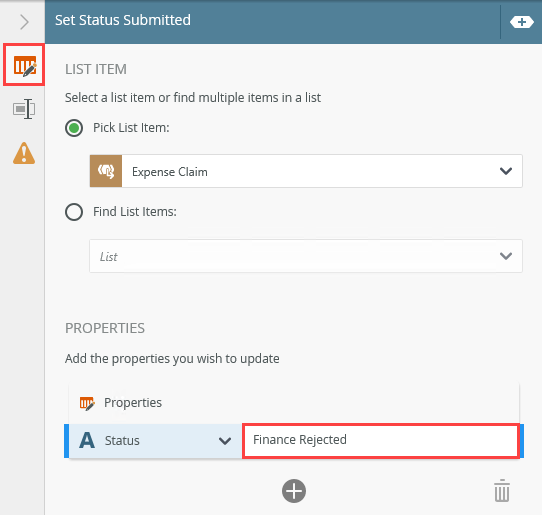

      Properties setting for Update List Item Step
    3. Click the Properties tab. Change the step name to
      Set Status Finance Rejected
      then collapse the Configuration Panel.

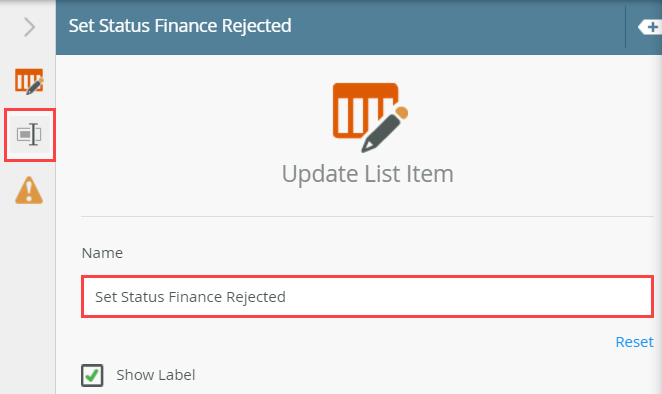

      Changing a Step Name
  4. Copy, then paste the Send Email Approved step. Move it to below the Set Status Finance Rejected step, then connect the two steps. Edit the step and change the subject line and message body to reflect the finance decision. Rename the step Send Email Finance Rejected.
    1. Next, you will add a Send Email step to let the originator know the finance decision. You can copy and paste the Send Email Approved step, then edit it.
      Select the Send Email Approved step, the copy and paste it to the design canvas. Move the duplicate step to below the Set Status Finance Rejected step. Connect the two steps.

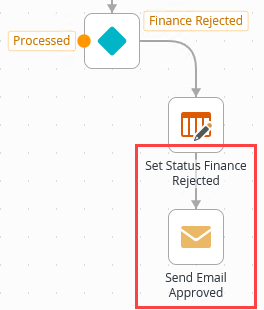

      Email Originator Finance Rejected Step
    2. Select the duplicated Send Email Approved step, then expand the Configuration Panel. Edit the SUBJECT line and BODY and change the values to reflect the finance rejected decision.

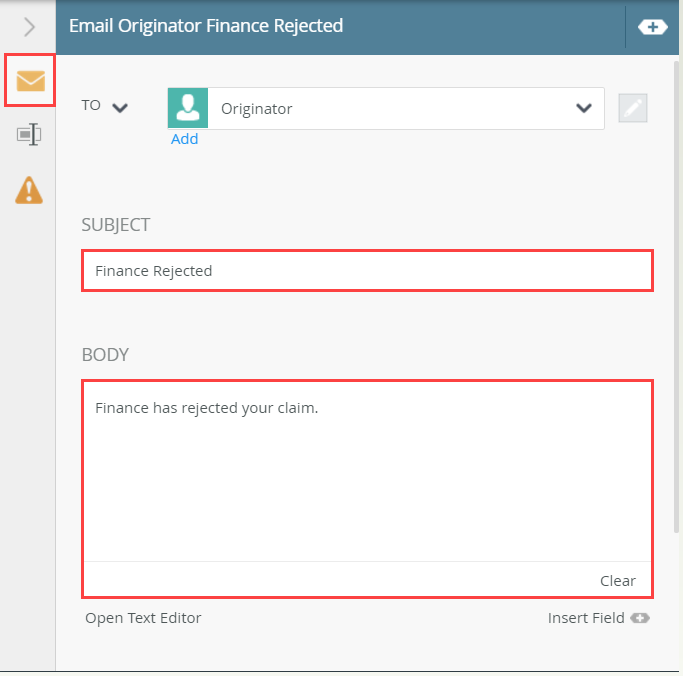

      Configure the Send Email Subject and Body
    3. Click the Properties tab. Change the name to
      Send Email Finance Rejected
      then collapse the Configuration Panel.
  5. Repeat the two steps above for the Processed outcome. Set the Status to Finance Processed, then rename the step Set Status Finance Processed. Edit the Send Email step to inform the originator of the finance processor's processed decision. Name the step Email Originator Finance Processed.
    1. Now, you will repeat the steps above for the Processed outcome. You can copy and paste, then edit the Set Status Finance Rejected and Send Email Finance Rejected steps. Be sure to rename the steps.

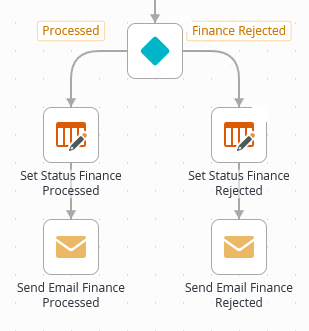

      Completing the Finance Processing Outcomes
  6. (Optional). Add two End steps to complete the outcomes. Use the image below as a guide.
    1. The last step is optional. Add two End steps so that the workflow has clear and concise end points. The End step can provide a visual end to your primary outcomes. You can also configure an End step to terminate the workflow at that point. In this case, your workflow outcomes are already complete, so you will just use the End step for visual purposes.
      Add two End steps. Place the first step below the Send Email Rejected step. Connect the email step to the End step. Likewise, connect the Cancel outcome to the End step. Add the second end step so that it aligns with the two email steps that complete the Finance Processing outcome. Connect the emails steps to the End step. Use the image below for reference, if needed.

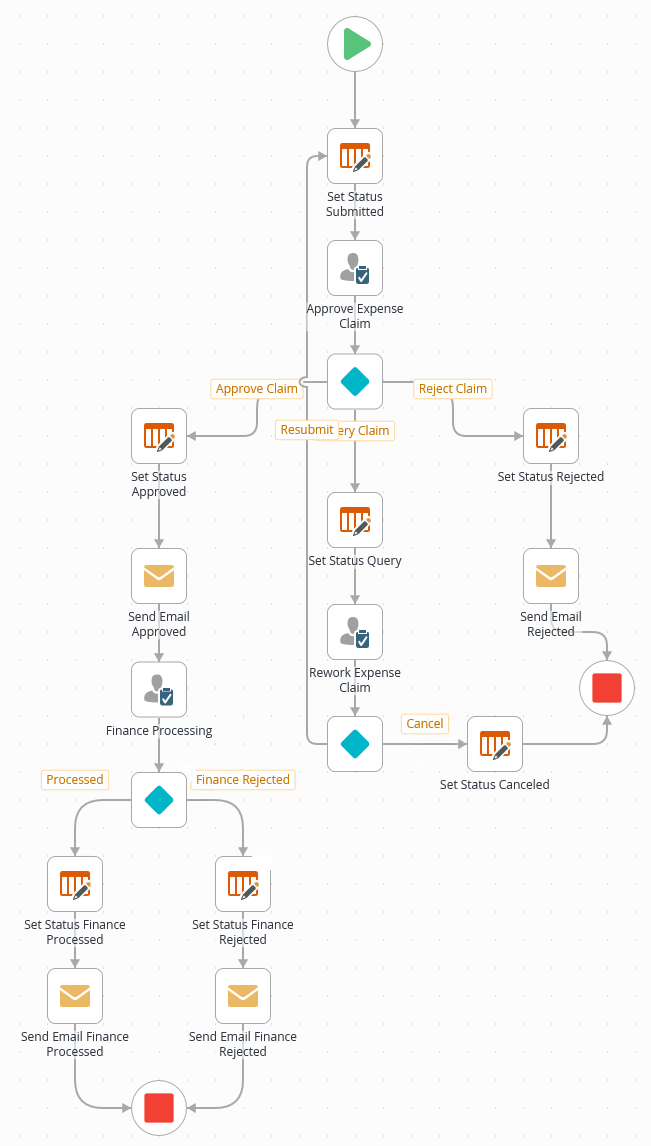

      Expense Claim Workflow Completed
Review

In this step, you completed the Expense Claim Workflow by configuring the Finance Processing steps. After adding and configuring the Task step, you once again copied and pasted existing steps to save time. You completed the workflow by adding End steps. While you can configure an End step to terminate a workflow process, you used them in this case to provide a clean visual indication of where the primary outcomes end. In the next step, you will verify the workflow start rules before deploying the final version of your workflow.

Next Step: 22. Confirm the Workflow Start Rules
