13. Edit the New Expense Claim Form

In the next three steps, you will edit the forms used in the Expense Claim application. You will add views to the forms, add and configure buttons to submit claims, configure rules to save the header, then details records, and finally configure rules to cancel the claim. In a later step, you will configure this form to start the Expense Claim Workflow.

  1. Check out and edit the New Expense Claim form.

    After making a control on a view invisible or deleting a control on a view, the associated form may display a red warning badge on the RULES icon. You must correct the issues before continuing. On the RULES screen, the rule associated with invisible or deleted controls also shows the red warning badge.

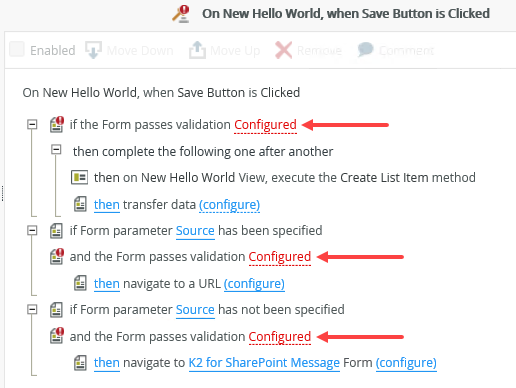

    Edit the rule, then locate the red configure links (there may be more than one). You need to edit each action that has a red configure link.

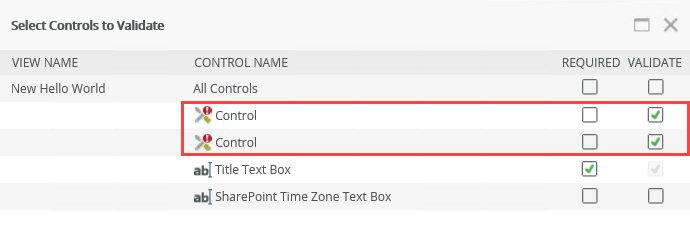

    UNCHECK the Validate boxes that have unnamed Controls. (There may be more than one.) Click OK.

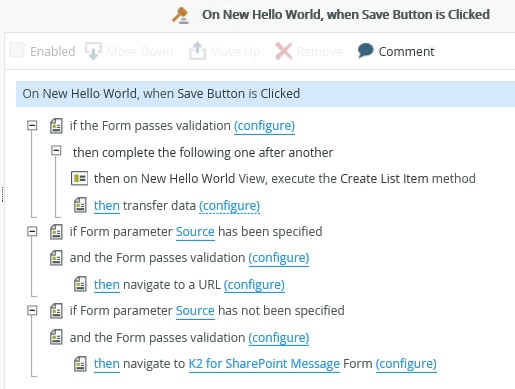

    This removes the validation errors and any red warning badges. You can continue with the tutorial.

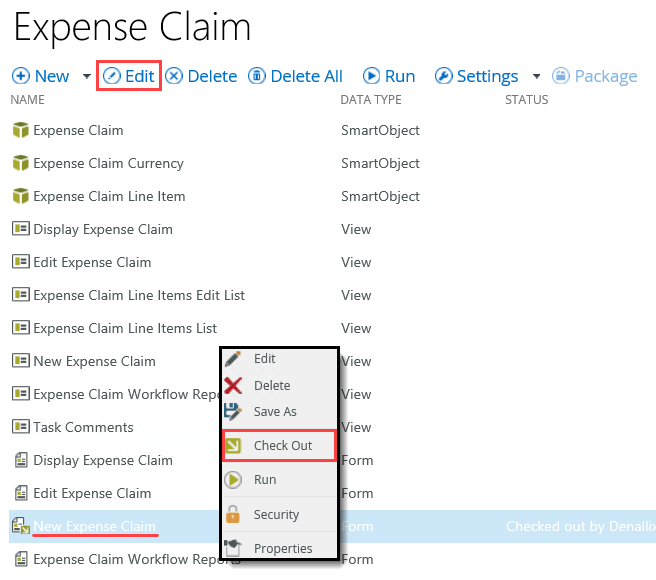

    1. On the K2 Application elements page, Check Out the New Expense Claim Form, then Edit the form.
      Edit New Expense Claim Form

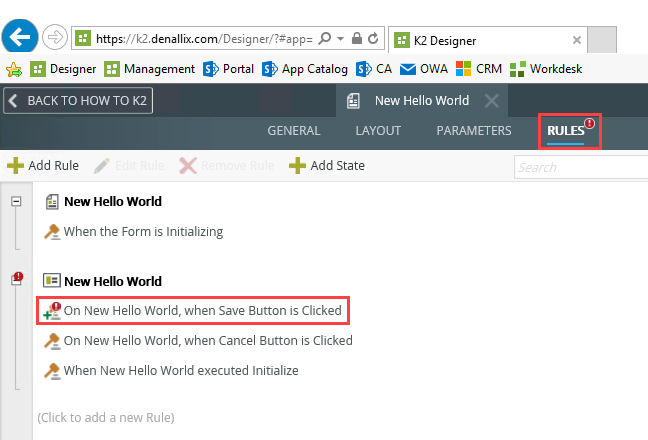

      2. When the form opens in K2 Designer, check to see if there is a red warning badge next to the RULES icon in the breadcrumb bar.

      After making a control on a view invisible or deleting a control on a view, the associated form may display a red warning badge on the RULES icon. You must correct the issues before continuing. On the RULES screen, the rule associated with invisible or deleted controls also shows the red warning badge.

      Edit the rule, then locate the red configure links (there may be more than one). You need to edit each action that has a red configure link.

      UNCHECK the Validate boxes that have unnamed Controls. (There may be more than one.) Click OK.

      This removes the validation errors and any red warning badges. You can continue with the tutorial.

  2. Drag the Expense Claim Line Items Edit List view onto the form and change the view title to Expense Claim Items.
    1. First you will add the editable list view used to capture expense claim line items to the form.
      Click the LAYOUT tab to return to the design canvas. In the left-side column near the top of your screen, click the Views tab. Navigate to the Expense Claim category and locate the Expense Claim Line Items Edit List view. (Do not click the view just yet. If you did and saw a warning message to stop editing the form, just click No. K2 is asking if you want to close the form and open the view.) Depending on your environment and SharePoint sites, your categories may be different from the image below.

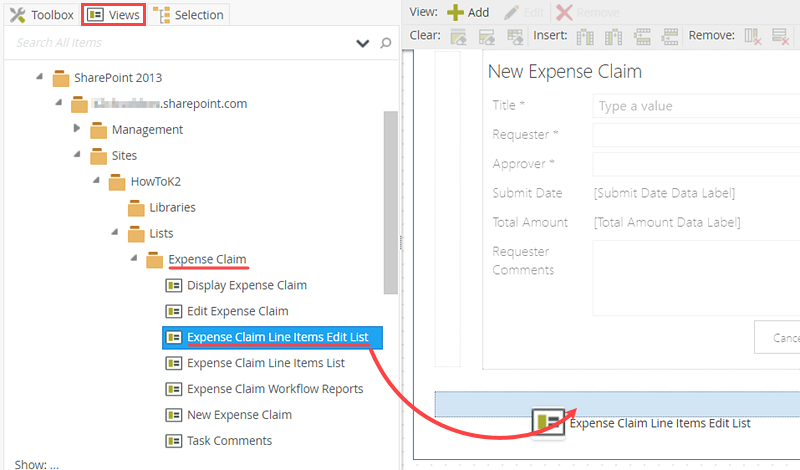

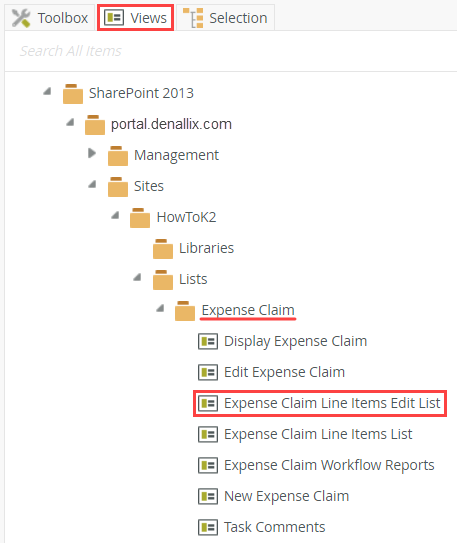

    2. Drag and drop the Expense Claim Line Items Edit List view onto the form layout, below the New Expense Claim view. If you are not familiar with SmartForms, as you drag a new element onto the canvas, a placeholder appears. Drop the view into the placeholder.

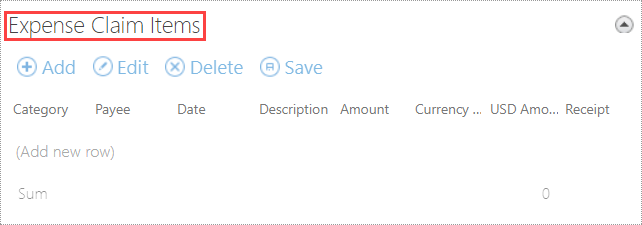

    3. Click on the (Enter View Title) line and change the view heading to:
      Expense Claim Items
  3. Add a one row, three column, layout table and two buttons to the form. Adjust the column widths and right-align the cells. Configure the Name and Text properties as follows:
    Button 1 NameButton Submit
    TextSubmit
    Button 2 NameButton Cancel
    TextCancel
    Adjust Button Cells
    1. Now you will add the submit and cancel buttons to the view. You begin by adding a layout table for the buttons. Notice the Save and Cancel buttons that appear in the New Expense Claim view on the top-half of the screen. In a previous step, you hid these controls so that you could add the submit and cancel buttons to the form (and not the view). You want the submit and cancel button rules to be on the form level so that they can control the actions of both views.

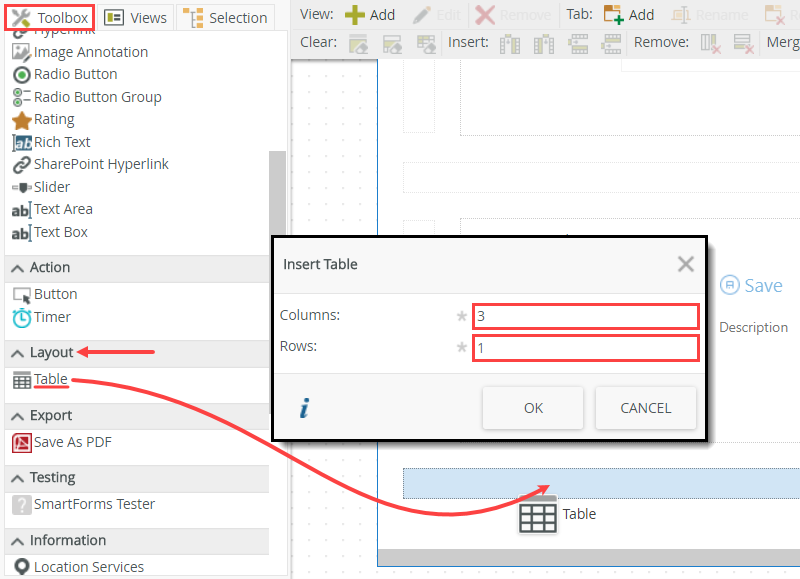

      From the Toolbox, drag a layout Table below the list view you just added. Configure the table to have one row and three columns.

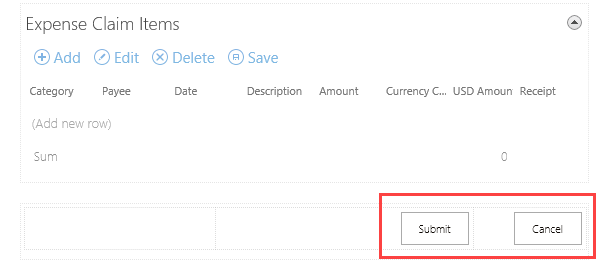

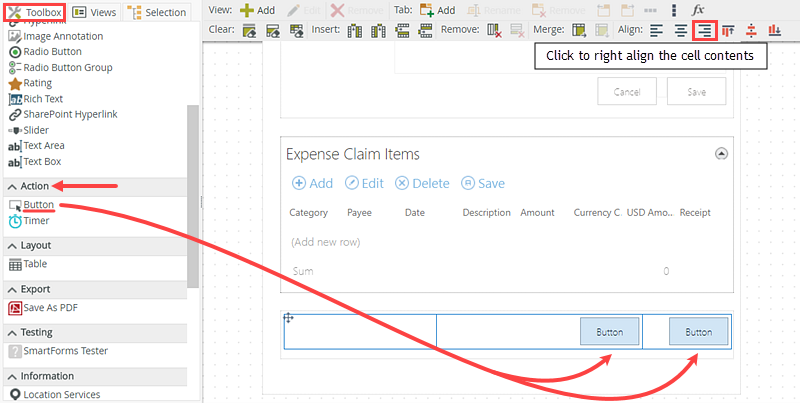

    2. Drag two Buttons from the Toolbox into the layout table's second and third cells. If you like, use the right-align button in the toolbar to align the buttons to the right-hand side of the cells. You can also adjust the column widths by hovering over the separator line between the cells and dragging it to the desired position.

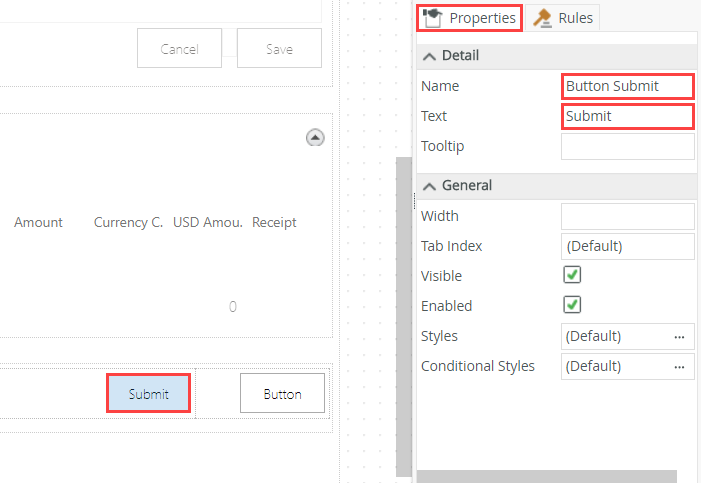

    3. Select the first button, then change its Name to
      Button Submit
      and its Text to
      Submit
      (Once again, if you are not familiar with SmartForms, the Name property is the control identifier that K2 uses to interact with the control. The Text property is the value that you see on the control.)
    4. Select the second button, change its Name to
      Button Cancel
      and its Text to
      Cancel
  4. Set the form’s Width property to 90%.

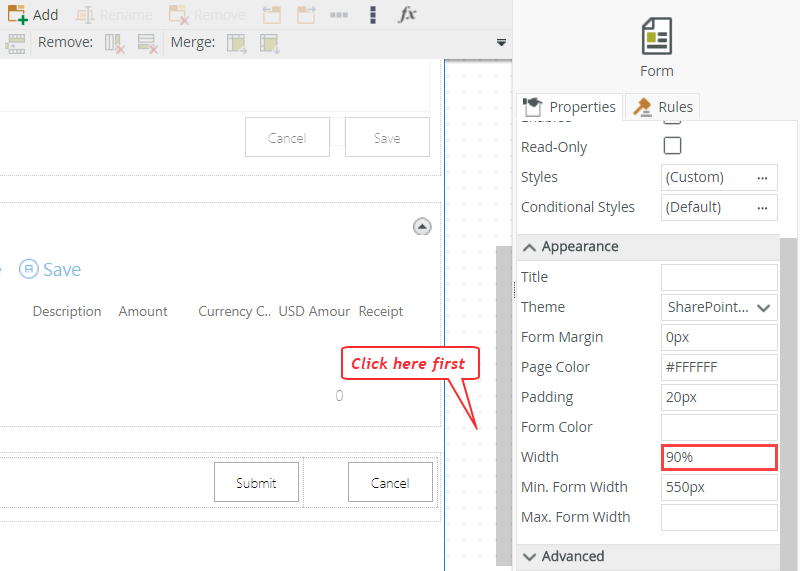

    1. Click anywhere on design canvas (outside of the two views). From the Properties pane, under the Appearance heading, change the form's Width to
      90%.
      SmartForms are browser-based forms. If you make the width 100%, the form extends the entire width of the screen, minus any left or right-side columns. Adjusting the width property gives your users a form that's much easier to navigate.
  5. Add a rule action for the Cancel button to ask for confirmation from the user, then call the On New Expense Claim, when Cancel Button is Clicked rule. Rename the rule to Confirm Cancel.
    specify headingConfirm Cancel
    specify messageAre you sure you want to cancel?
    1. In the next several steps, you will configure the rules for the cancel and submit buttons. For the cancel button, you want to prompt the user for a confirmation before canceling the claim and closing the form.

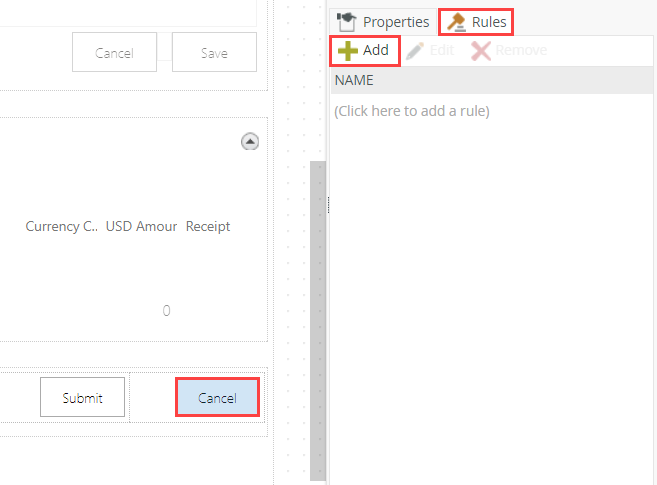

      Select the Cancel button, then Add a rule for the button.

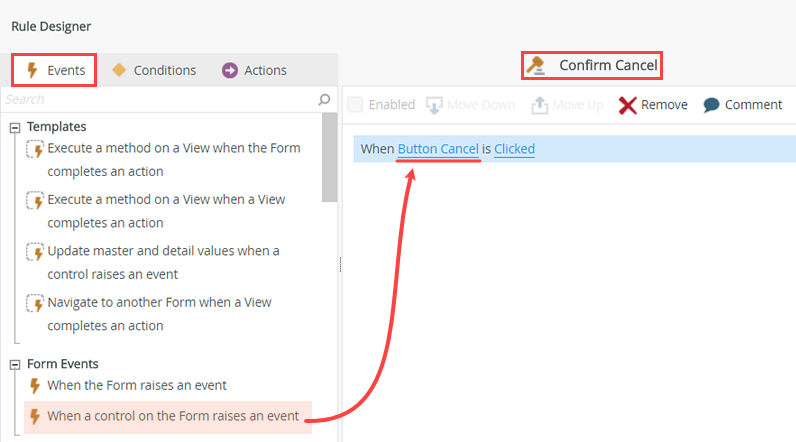

    2. For the Event that starts the rule, configure the rule to fire When a Control on the Form raises an event and configure it for when the Button Cancel is clicked. Click the default title and change it to
      Confirm Cancel
      so that it is easier to tell what the rule does.
    3. Now you will add two actions to the cancel rule. The first action requires you to confirm you want to cancel the claim. The second action calls an existing rule that closes the form and redirects you back to the Expense Claim list in SharePoint.

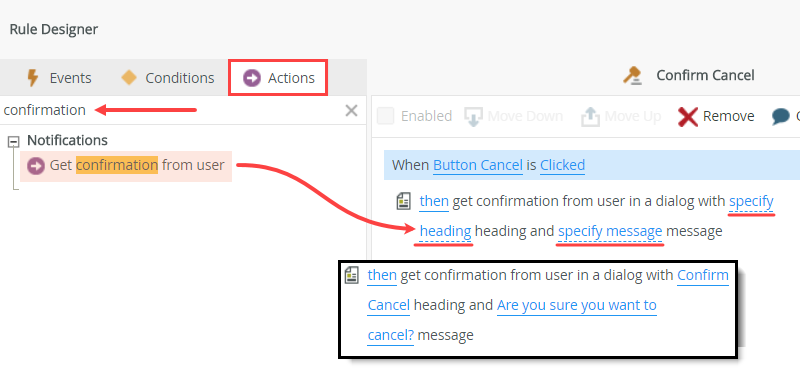

      Select the Actions tab, then locate and select the Get confirmation from user action. (You can search for the action if you like.) Configure the action as follows:
      specify headingConfirm Cancel
      specify messageAre you sure you want to cancel?

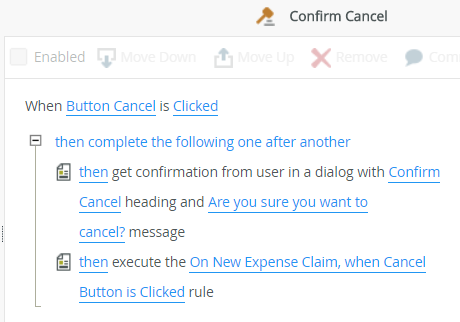

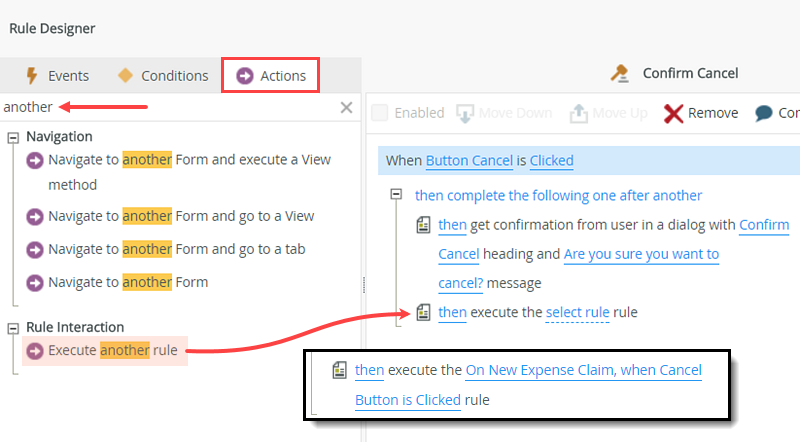

    4. In the Actions pane, select the Execute another Rule Action. Configure the Rule to call the On New Expense Claim, when Cancel Button is Clicked rule, then click OK.
      Explaining this step a little further. When you generated the New Expense Claim View, K2 added a Save button and a Cancel button. Each of these buttons has rules already attached to them to perform the selected action. You hid both of these buttons from the view because you are adding the buttons at the form level. The rules still remain however. In this step, you are simply calling the existing cancel rule instead of configuring a new rule that does the same thing.
  6. Add a new rule to copy the value of the Sum USD Amount to the Total Amount data label on the New Expense Claim view and rename the rule to Transfer Total Amount.

    1. Next, you will add a new rule that copies the Sum USD Amount value from the Expense Line Items (details) View to the New Expense Claim (header) View whenever the Sum USD Amount control changes.

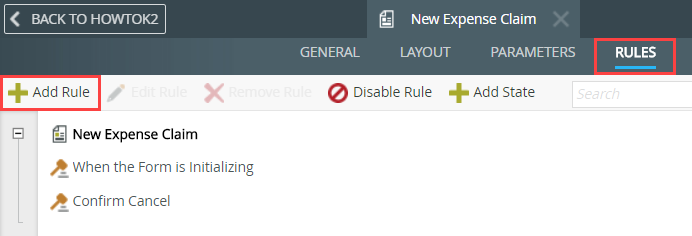

      Navigate to the RULES screen for the form, then click Add Rule .

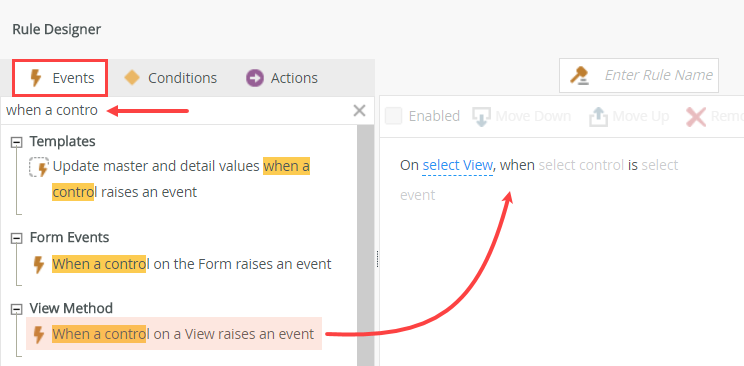

    2. On the Events tab, select the When a control on a View raises an event to add it to the rule definition pane.
    3. First you will change the rule title so that it is clear what the rule does. Click (Enter Rule Name) and rename the rule to
      Transfer Total Amount

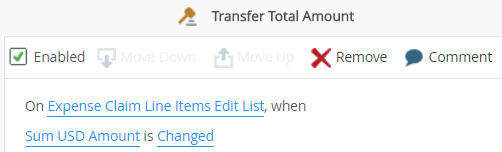

    4. Edit the rule links so that they reflect when the Sum USD Amount control on the Expense Claim Line Items Edit List view is Changed.

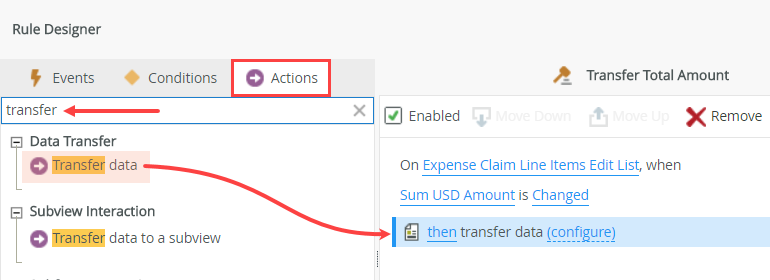

    5. Now switch to the Actions screen. For the action, scroll down or search for Transfer data. Click it once to add it to the rule definition pane.

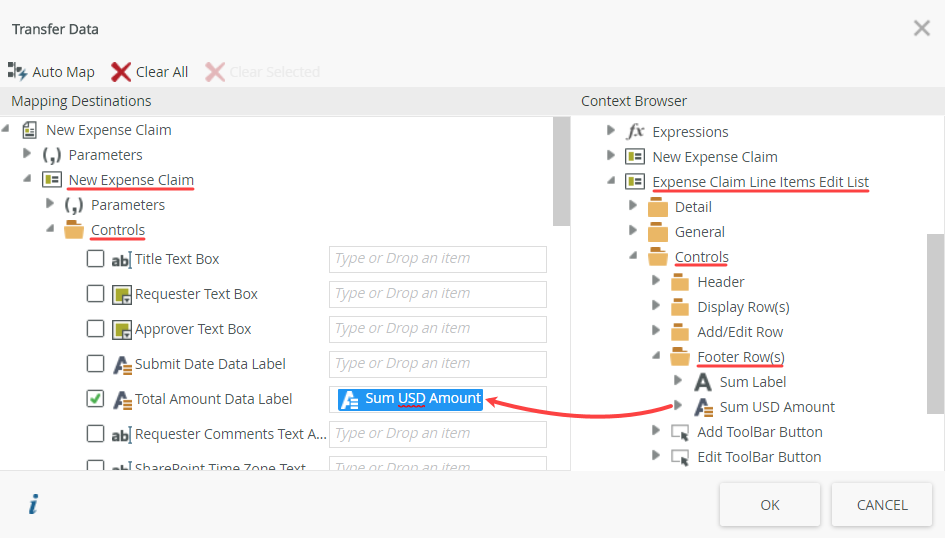

    6. Click the (configure) link to set up the action. On the Transfer Data screen, drag the Sum USD Amount from the Footer Rows() of the Expense Claim Line Items Edit List view into the Total Amount Data Label control for the New Expense Claim view. Click OK, then OK once again to complete setting up the rule.

      7. There are a couple of things to note in this step. First, when you added the sum aggregation to the Expense Claim Line Items Edit List view, K2 added a row to the bottom of the layout table. This row became the footer. That is why you find your initial transfer value under the Footer category. The second point to make is you are copying the sum aggregation value to the Total Amount Data Label. The Total Amount Data Label updates each time the sum aggregation value changes. Because there are two views involved, you must apply the rule at the form level, as views are independent of each other.

  7. Add a rule that fires when you click the submit button:
    1. Condition: the form passes validation with the following required fields:
      • Title Text Box
      • Requester Text Box
      • Approver Text Box
      • Total Amount Data Label
    2. Action: Execute the Create List Item method on the New Expense Claim view. Auto-map the input mappings. Depending on your version of K2, some fields may not map. (You previously deleted these controls.) Other versions of K2 map all fields regardless.

    3. Save the returned ID for the Expense Claim header record.
    4. Action: Execute the Create method for all the items that were added to the Expense Claim Items Edit List view.
    5. Map the ID of the Expense Claim header record to the Expense Claim ID property.
    6. Manually map the properties of the Expense Claim Line Item SmartObject to the remaining input mappings.
    7. Action: Show a message to the user with the expense claim ID and title.
    8. Action: Call the On New Expense Claim, when Cancel Button is Clicked rule.
    1. Next, you will configure the rule for the submit button. The rule actions first create the header record, which is the record in the Expense Claim (SharePoint) list. You will save that record's ID back to the SmartObject. After you create the header record, you create the details records, which are the records in the Expense Claim Line Items (SmartBox) SmartObject. You will map the saved header ID to the Expense Claim ID property in the details records, which then bind the header and details records. This creates a parent-child model where each child record has an ID property that matches its parent record.

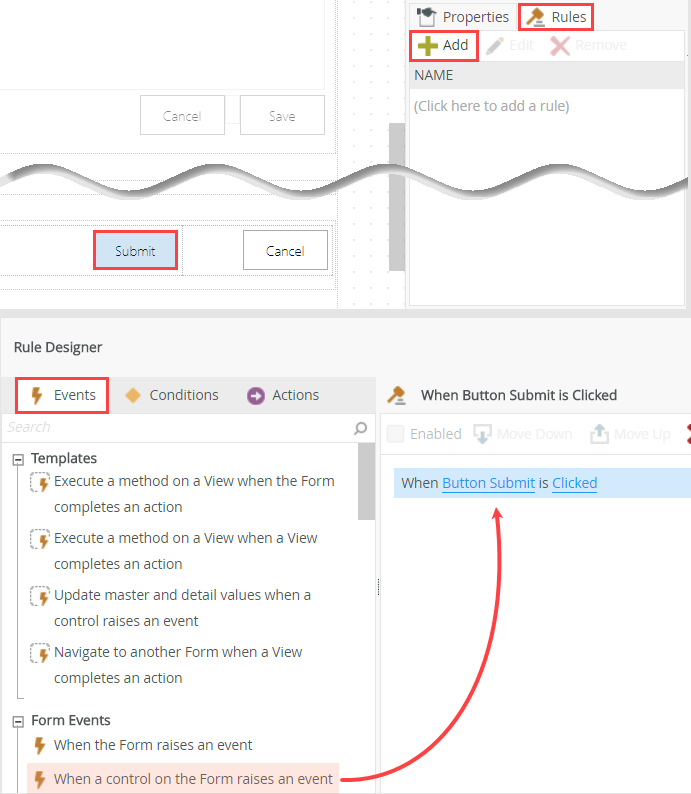

      Click the LAYOUT tab in the breadcrumb bar. Select the Submit button at the bottom of the form, then add a new rule with the event, When a control on the Form raises an event. Configure the event to read: When Button Submit is Clicked.

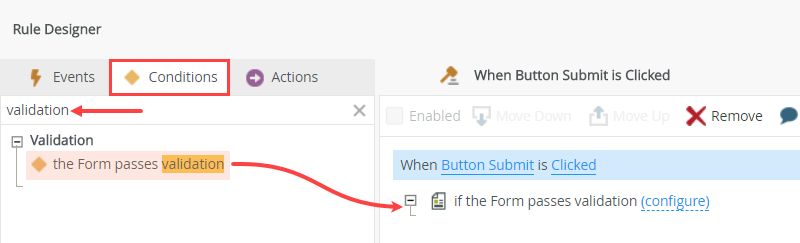

    2. Add a condition that checks to see if specific fields have values. In other words, you are requiring certain fields. Click the Conditions tab, locate and select the Form passes validation condition to add it to the rule definition pane. Click the configure link.

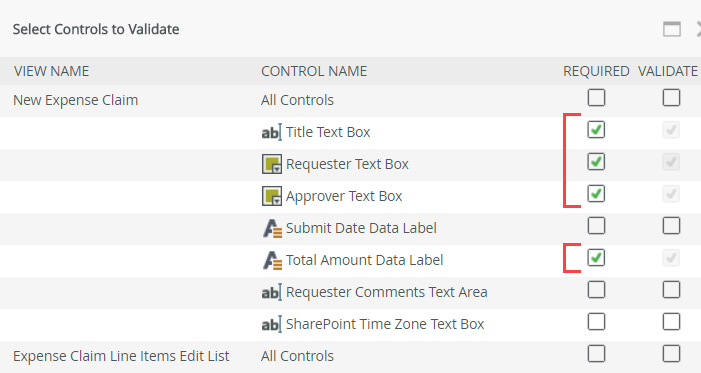

    3. Configure the validation so that the following controls are required, then click OK.
      • Title Text Box
      • Requester Text Box
      • Approver Text Box
      • Total Amount Data Label
    4. The next two actions create the header (parent) record, then the details (child) records. First, you create the parent record (the record in the Expense Claim list in SharePoint). Then you save the list item ID back to the SmartObject. Next, you create the child records in the Expense Claim Line Item SmartObject, mapping the parent list item ID to a property in the child record. By mapping the ID from the parent record to the child records, each child record in the SmartObject is associated with a single parent record in the SharePoint list. A single parent record could have multiple child records.

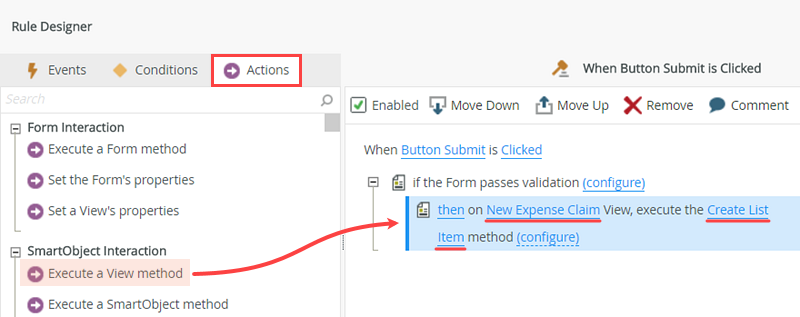

      Add an action to Execute a View method. Configure the action to call the Create List Item method of the New Expense Claim view. Click (configure).

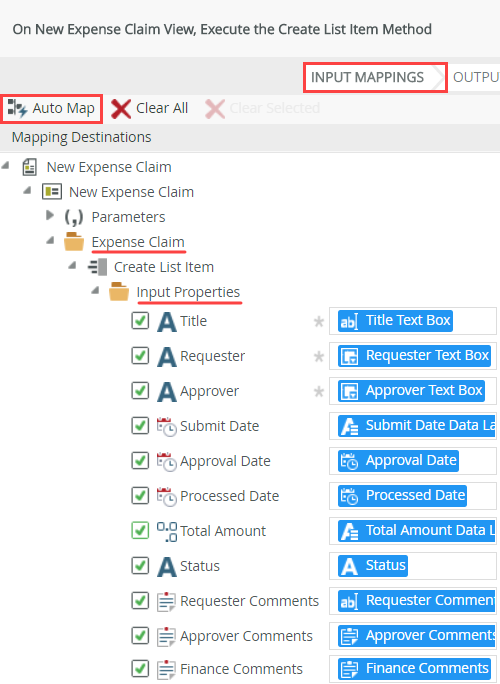

    5. On the Input Mappings screen, select Auto Map to automatically map the controls on the form to the Expense Claim SmartObject properties.

      6. This step takes the form field values from the Expense Claim header view and uses them to create a new list item in the Expense Claim list. (Depending on your K2 version, auto-mapping may populate all the properties, or just the properties actually displayed on the form, leaving some properties blank. Either way, it is safe to continue.)

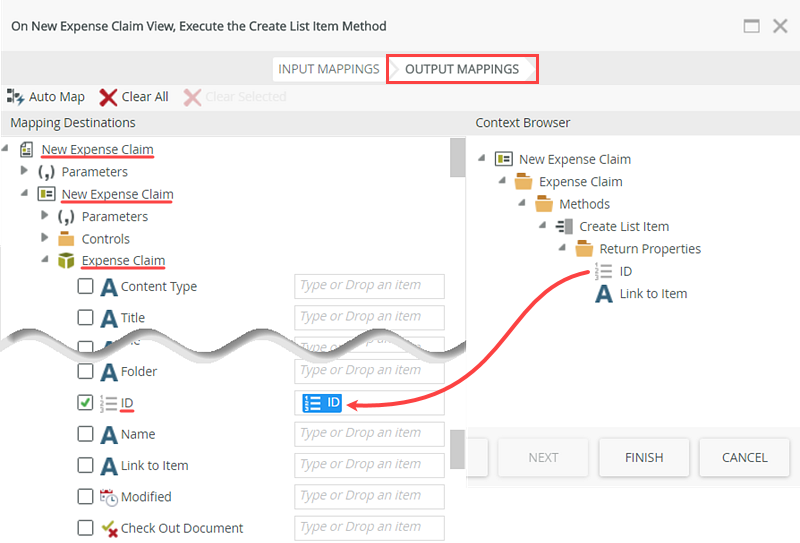

    6. Now, you will save the ID from the Expense Claim list item back to the SmartObject. This makes the ID available for you to map it to the child records. Click NEXT. On the Output Mappings screen, drag the ID return property to the ID of the Expense Claim SmartObject. Click FINISH to complete this action configuration.
    7. You have just created the parent record in the SharePoint list and you saved the ID from that record back to the Expense Claim SmartObject. Now, you will add the action to create the child records.
      Add an action to Execute a View method for items that are in a specific state and configure the action to execute the Create method of the Expense Claim Line Items Edit List view for all the items that have been Added.

      8. This is the action that loops through rows of line items and creates individual records for each row. You will map the ID you saved from the parent record to a property in the child records to bind the parent and child records. Click (configure).

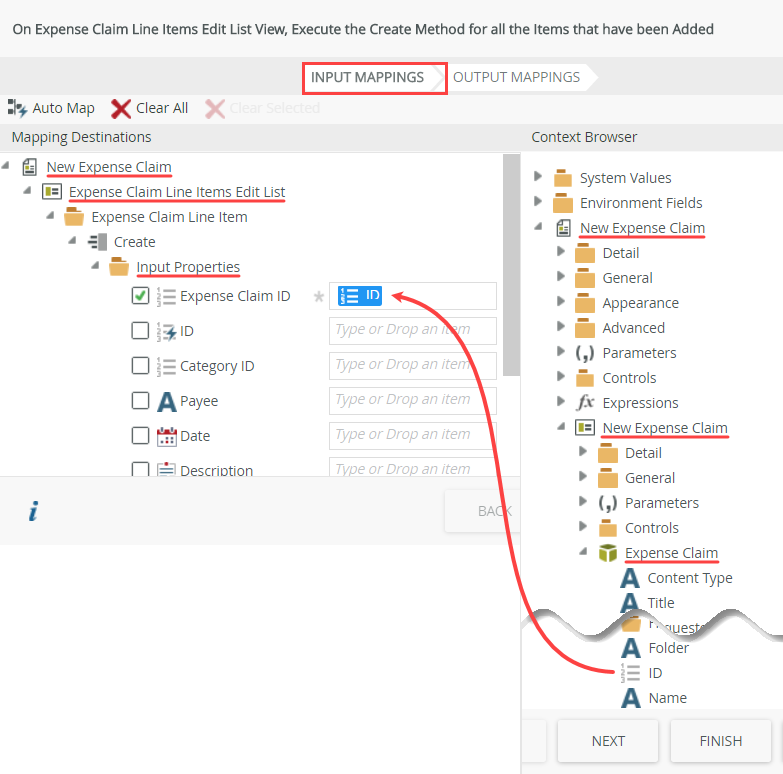

    8. On the Input Mappings screen, use the Context Browser to navigate to the New Expense Claim view, then expand the Expense Claim SmartObject. Drag the ID property into the Expense Claim ID input property. (This is the ID you just saved from the parent record.) The child records have an association now with their parent record.

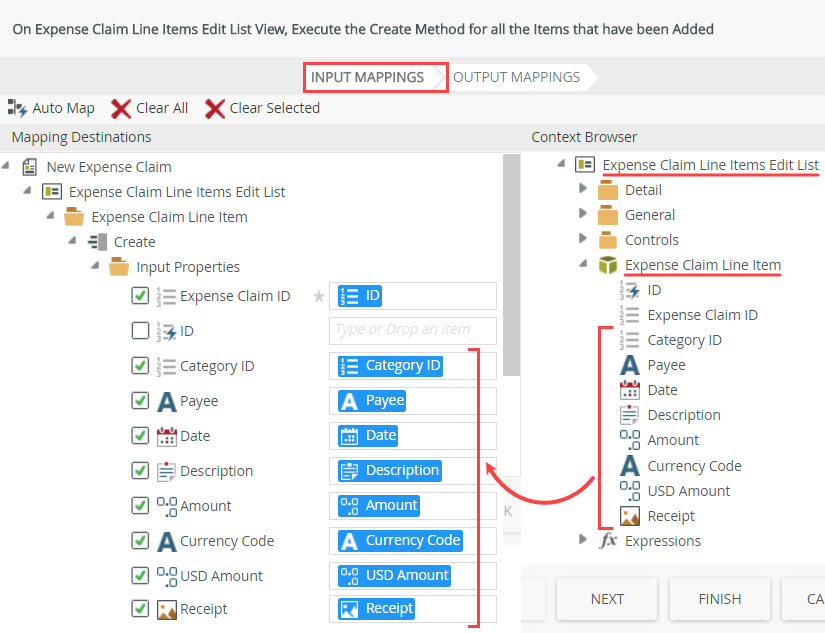

    9. Now you will map the remaining input values. In the Context Browser, expand the Expense Claim Line Items Edit List > Expense Claim Line Item SmartObject, then drag the properties to their respective Input Properties. (You don't have to map the ID because K2 creates a new ID for each new record anyway. But you can if you want to.)
      When mapping properties for an editable list, you map the properties from the associated SmartObject and not the controls. The SmartObject allows for the looping process while saving multiple records.
    10. Click NEXT, then FINISH to complete the rule action configuration.
    11. To complete the user experience, you will show a confirmation message with the ID of the new expense claim.

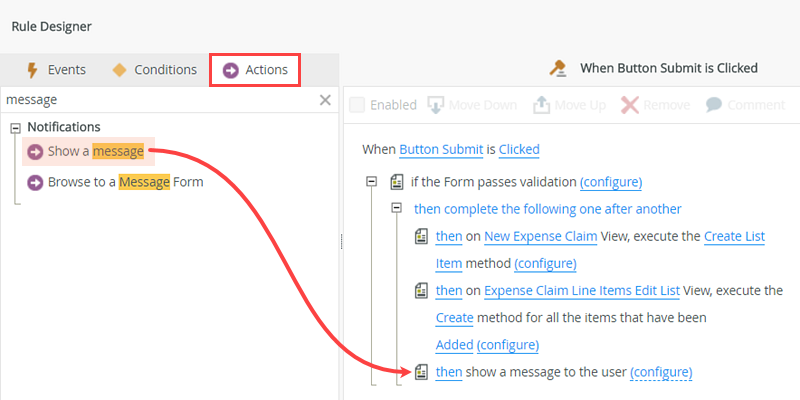

      Add an action to Show a message, then click (configure).

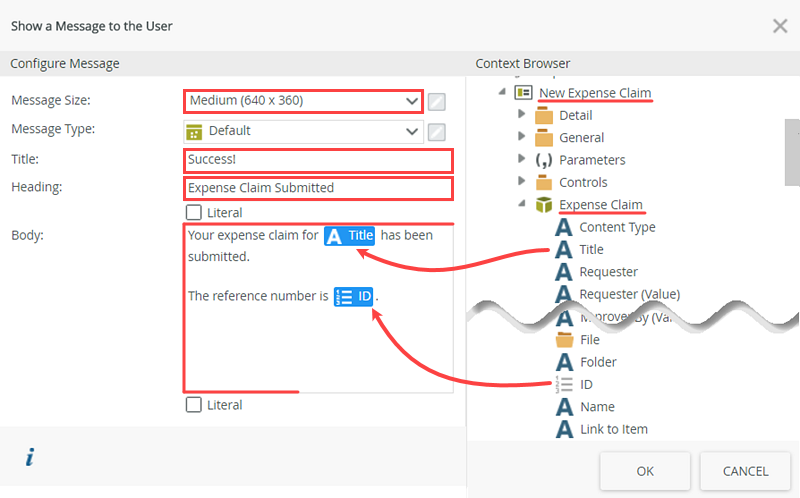

    12. Configure the message using the values below and dragging values from the Context Browser for the Title and ID, then click OK.
      Message SizeMedium
      Message TypeDefault
      TitleSuccess
      HeadingExpense Claim Submitted
      BodyYour expense claim for [Title] has been submitted. The reference number is [ID].
    13. Finally, you want to redirect the user back to the Expense Claim list (in SharePoint) after they have read the confirmation message.
      Add an action to Execute another Rule. Configure the action to call the On New Expense Claim, when Cancel Button is Clicked rule . You are reusing the rule defined for the cancel button. Since the data is already saved, clicking cancel will not undo any records. It will close the form and send you back to the Expense Claim list.
  8. Set the two methods that create items to execute as a batch. Finish the form, then check in the form.
    1. Next you will set up the rule execution so that the data create operations happen as a single batch action. By default, the actions are set to run one after another. You want them to run as a group, so that K2 creates the parent and child records before moving on to any other events or actions. To do this, you must change the order to run as a batch.
      In the rule definition pane, select then for the New Expense Claim View, execute the Create List Item method action. Change it to also.
    2. In the rule definition pane, select then for the Expense Claim Line Items Edit List View, execute the Create method for all the items that have been Added action. Change it to also.

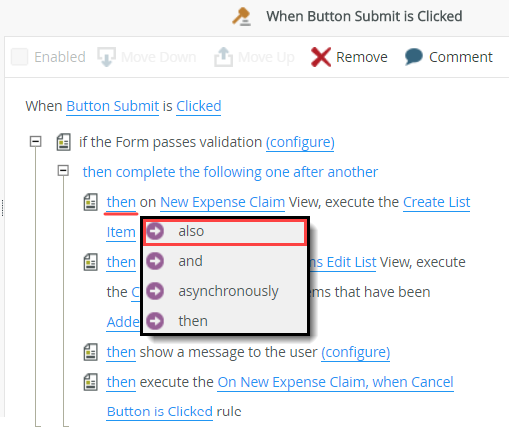

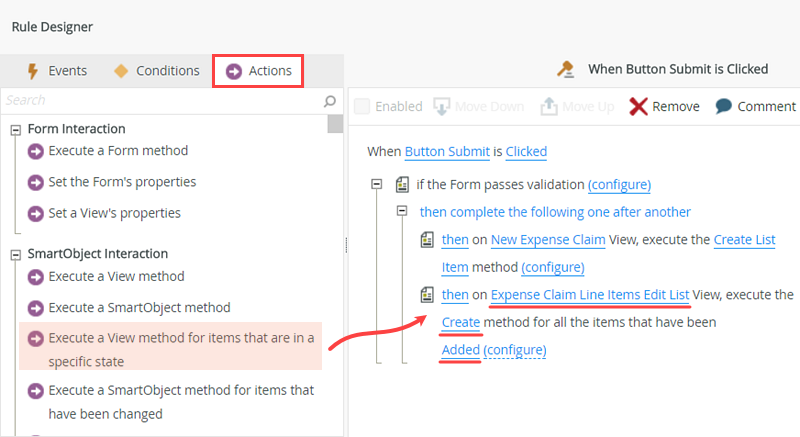

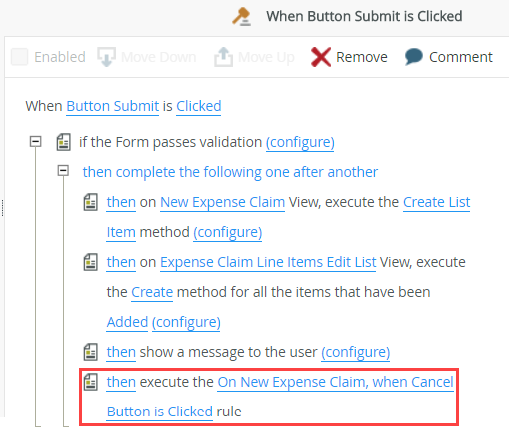

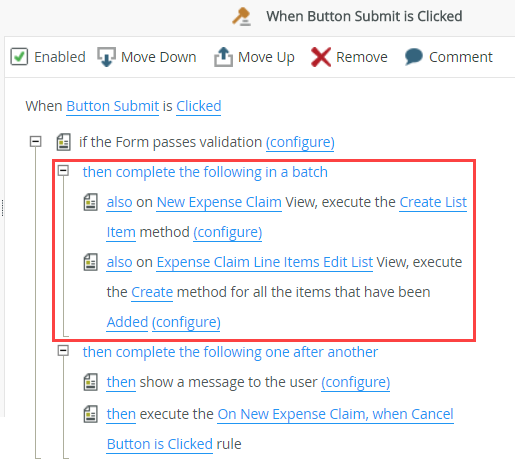

      3. The When Button Submit is Clicked rule should look like the image below.

      You have now set up the two create record actions to run as a single batch task. To recap, the rule does the following when the user clicks the submit button:

      • if the form passes validation (all the relevant required fields have values)
      • as a single operation, create the Expense Claim header, or parent, record
      • then create the details, or child, records for each line item you add to the Expense Claim Edit List
      • then show a message with the ID of the new Expense Claim header record
      • then return to the SharePoint site where you began

    3. Click OK to exit the Rule Designer, then click FINISH to save and exit the New Expense Claim form. Check in the form.
  9. If time allows, test the form by adding a new item to the Expense Claim list in SharePoint. When you submit the form, you should see the confirmation message with the reference ID.
    1. The New Expense Claim form is now complete. If time allows, test the form by submitting a new claim to your SharePoint list.
      Open the Expense Claim list and add a new item.

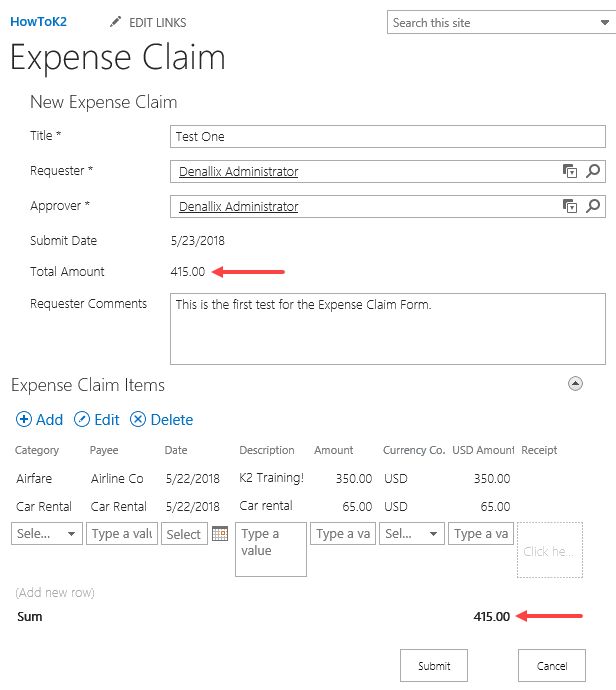

    2. Add some comments, pick an approver, and add some items to the form. You should see the total amount on the form update when you add new line items to the expense claim.
      Test Expense Claim Form

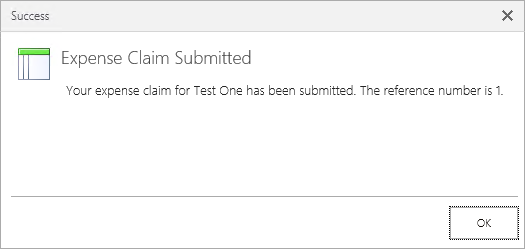

    3. After clicking Submit, you should see a message with the ID of the new expense claim record.
      Confirmation Message
    4. After clicking OK, you should be sent back to the Expense Claim list and you should see your new item in the Expense Claim list.
Review

In this step, you created a complex form that leverages several SmartForms concepts including:

In the next step, you edit the "display" form and add the read-only list view.

Next Step: 14. Edit the Display Expense Claim Form
Expense Claim Application
