Operator	Description
Conversion	Converts data into other formats, based on input value and returns the converted value
List Aggregators	List Aggregators perform calculations, usually based on input of a collection of values and returns a number
Date and Time	The Date and Time functions perform an operation on a date and time input value and return a string, numeric, or date and time value
Logical	A Logical function perform a logical operation or comparison on objects and expressions and returns a Boolean value
Mathematical	Mathematical functions perform calculations, usually based on input values and returns a number
Operators	Provides a large set of operators, which are symbols that specify which operations to perform in an expression.The feature help topic lists the mathematical operators you can use in constructing an expression. Arithmetic operators perform mathematical operations on two expressions of one or more of the data types of the numeric data type category
Regular Expression	Regular Expressions provide a powerful, flexible, and efficient method for Workflowing text. A regular expression is a pattern that the regular expression engine attempts to match in input text
Text	Converting a value or field to a text string allows you to concatenate text strings or perform other text functions
Value Aggregators	Perform calculations, usually based on input values, and returns a number result

Note that the success of a conversion depends on the data itself and not only on the input type. For example, converting a Decimal to Boolean will only work if the decimal number is 1.0 or 0.0.
Boolean can be converted from a number, where 1 equals True and 0 equals False.

Function	Accepted input types
To Boolean	Text, Number, Decimal, Boolean
To Date and Time	Text
To Decimal	Text, Number, Decimal, Boolean
To Number	Text, Number, Decimal, Boolean
To Text	Text, Number, Decimal, Boolean

An item is selected and then added to the canvas by using drag-and-drop.

Functions	Description	Example
To Boolean	Converts a value to a Boolean data type.	Input Value: "True" Result: True
To Date and Time	Converts a value to a Date and Time data type.	Input Value: "2009/02/02 05:05:05 AM" Result: 2009/02/02 05:05:05 AM
To Decimal	Converts a value to a Decimal Data type.	Input Value: "1" Result: 1.0
To Number	Converts a value to an Number data type.	Input Value: "1.0" Result: 1
To Text	Converts a value to a Text data type.	Example: Input Value: 12345 Result: "12345"

Date and Time functions perform operations on date and time input values and return a string, numeric, or date and time value. Values are converted to their native data types where possible.

An item is selected and then added to the canvas or SmartForms field part by clicking the Add button or by using drag-and-drop.

Functions	Description	Example
Add Days	Adds a specified number of days to a date	Date and Time: 01/01/2009 00:00:00 AM Days: 1 Result: 01/02/2009 00:00:00 AM
Add Hours	Adds a specified number of hours to a date and time	Date and Time: 01/01/2009 00:00:00 AM Hours: 1 Result: 01/01/2009 01:00:00 AM
Add Minutes	Adds a specified number of minutes to a date and time	Date and Time: 01/01/2009 00:00:00 AM Minutes: 1 Result: 01/01/2009 00:01:00 AM
Add Seconds	Adds a specified number of seconds to a date and time	Date and Time: 01/01/2009 00:00:00 AM Seconds: 1 Result: 01/01/2009 00:00:01 AM
Date/Time Difference	Determines the difference between two dates, returning the difference in the specified interval with sub-intervals as decimal fractions. Intervals available: year, month, day, hour, minute, second and millisecond	Interval: Day First Date: 01/01/2009 00:00:00 AM Second Date: 01/02/2010 00:00:00 AM Result: -366
Day	Gets the day of a given date	Date: 01/01/2009 00:00:00 AM Result: 1
Day Difference	Determines the number of days between two dates. Times are excluded from the calculation.	Example 1: First Date: 01/01/2009 00:00:00 AM Second Date: 01/02/2009 00:00:00 AM Result: 1 Example 2: First Date: 01/01/2009 00:00:00 AM Second Date: 01/02/2009 12:00:00 PM Result: 1
End of Month	Gets the last day of a month	Date and Time: 01/01/2009 00:00:00 AM Result: 01/31/2009 11:59:59 PM
End of Quarter	Gets the last day of a quarter	Date and Time: 01/01/2009 00:00:00 AM Result: 03/31/2009 11:59:59 PM
End of Week	Gets the last day of a week	Date and Time: 01/01/2009 00:00:00 AM Result: 01/06/2009 11:59:59 PM
End of Year	Gets the last day of a year	Date and Time: 01/01/2009 00:00:00 AM Result: 12/31/2009 11:59:59 PM
Format Date and Time	Formats a date and time to a text representation using a specified date and time format	DateTime: 01/01/2009 00:00:00 AM Format: "dddd, dd MMMM yyyy" Result: "Thursday, 1 January 2009"
Maximum	Gets the maximum date and time from a list of values	Values: {01/01/2009 00:00:00 AM, 01/02/2009 00:00:00 AM } Result: 01/02/2009 00:00:00 AM
Minimum	Gets the minimum date and time from a list of values	Values: {01/01/2009 00:00:00 AM, 01/02/2009 00:00:00 AM } Result: 01/01/2009 00:00:00 AM
Month	Gets the month of a given date as a number	Date: 01/01/2009 00:00:00 AM Result: 1
Now	Gets the current date and time	Result: 05/20/2009 03:34:27 PM
Start of Month	Gets the first day of a month	Date and Time: 01/01/2009 00:00:00 AM Result: 01/01/2009 00:00:00 AM
Start of Quarter	Gets the first day of a quarter	Date and Time: 01/01/2009 00:00:00 AM Result: 01/01/2009 00:00:00 AM
Start of Week	Gets the first day of a week	Date and Time: 01/01/2009 00:00:00 AM Result: 12/28/2008 00:00:00 AM
Start of Year	Gets the first day of a year	Year: 2009 Result: 01/01/2009 00:00:00 AM
Subtract Days	Subtracts a specified amount of days from a date	Date and Time: 01/01/2009 00:00:00 AM Days: 1 Result: 12/31/2008 00:00:00 AM
Subtract Hours	Subtracts a specified amount of hours from a date and time	Date and Time: 01/01/2009 00:00:00 AM Hours: 1 Result: 12/31/2008 00:23:00 AM
Subtract Minutes	Subtracts a specified amount of minutes from a date and time	Date and Time: 01/01/2009 00:00:00 AM Minutes: 1 Result: 12/31/2008 00:59:00 AM
Subtract Seconds	Subtracts a specified number of seconds from a date and time	Date and Time: 01/01/2009 00:00:00 AM Seconds: 1 Result: 12/31/2008 00:00:59 AM
Today	Gets the current day	Result: 05/20/2009 00:00:00 AM
Tomorrow	Return tomorrow's date	Result: 05/21/2009 00:00:00 AM
Week Number	Gets the week number of the year of a specified date	Date: 01/01/2009 00:00:00 AM Result: 6
Weekday	Gets the name of the day of the week from a specified date	Date: 01/01/2009 00:00:00 AM Result: "Thursday"
Year	Gets the year of a date	Date: 01/01/2009 00:00:00 AM Result: 2009
Yesterday	Returns yesterday's date	Result: 05/19/2009 00:00:00 AM

The following table lists the date and time abbreviations recognized by the Format Date and Time function.

Date and Time	Abbreviations	Example
Year	y, yy, yyyy	9, 09, 2009
Month	M, MM, MMM, MMMM	2, 02, Feb, February
Day	d, ddd, dddd	21, Sat, Saturday
Hour	h, hh, H, HH	4, 04, 16, 16
Minute	m, mm	1, 01
Second	s, ss	1, 01
Millisecond	ffff	9999
A.M. or P.M.	t, tt	P, PM

The following table lists the standard date and time specifiers recognized by the Format Date and Time function.

Specifier	Pattern value (for en-US culture)
t	h:mm tt
d	M/d/yyyy
T	h:mm:ss tt
D	dddd, MMMM dd, yyyy
F	dddd, MMMM dd, yyyy h:mm:ss tt

Constructing a Dynamic String

If you want to use parts of a date to construct a dynamic string, the following options may be considered:

• Use the separate expresssion values such as Day, Month, Year, etc and combine them as required
• Use a formatted date to construct a string closer to the required outcome

  Examples:

  • d Short date pattern (e.g.: 02/17/2007)
  • D Long date pattern (e.g: Saturday, 17 February 2007)
  • t Short time pattern (e.g.: 22:10)
  • T Long time pattern (e.g.: 22:10:30)
  • F Full date pattern (e.g.: Saturday, 17 February 2007 22:10:30)
  • m (or M) Month and day pattern (e.g.: February 17)
  • s Sortable date and time pattern (e.g.: 2007-02-17T22:10:30)
  • y (or Y) Year and month pattern (e.g.: 2007 February)
• This can still be customized even further with extra expressions

 Using the To Text conversion function to convert the Current Date:

 Current Date as reflected in current release of K2 smartforms:

 Current Date as reflected after being converted:

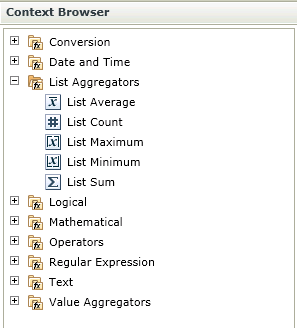

List Aggregators perform calculations, usually based on input from a collection of values, and then returns a result.

An item is selected and then added to the canvas or SmartForms field part by clicking the Add button or by using drag-and-drop.

Functions	Description	Example
Average	Calculates the average of a collection of values	Input Values: { 1, 2, 3 } Result: 2
List Count	Calculates the total count of a collection of values	Input Values:{ 1, 2, 3 } Result: 3
Maximum	Gets the maximum value of a list of values	Values: { 1, 2, 3 } Expected When Empty: 0 Result: 3
Minimum	Gets the minimum value of a set of values	Values: { 1, 2, 3 } Expected When Empty: 0 Result: 1
Sum	Gets the sum of a set of values	Values: { 1, 2, 3 } Result: 6

Logical functions perform a logical operation or comparison on objects and expressions and returns a Boolean value.

An item is selected and then added to the canvas or SmartForms field part by clicking the Add button or by using drag-and-drop.

Functions	Description	Example
And	Perform an And operation on two Boolean values, returning true if both values are true, false if any value is false	Input Value: True Input Value: False Result: False
Equals	Determines if two values or fields are equal	Result: True
Greater Than	Determines if the value on the left is greater than the value on the right	Result: True
Greater Than Equals	Determines if the value on the left is greater than or equal to the value on the right	Result: True
If	Returns one of two values (Boolean condition, True, False) based on a Boolean condition. Nested expressions are allowed up to 7.	Condition: True True Value: "Test string 1" False Value: "Test string 2" Result: "Test string 1"
Less Than	Determines if the value on the left is less than the value on the right	Result: True
Less Than Equals	Determines if the value on the left is less or equal to the value on the right	Result: True
Not	The Not function changes false to true and true to false. Returns a true value if the condition evaluates to false and a false value if the condition evaluates to true	Condition: True Result: False
Not Equals	Determines if two values or fields are not equal	Condition: True Result: False
Or	Perform an Or operation on two Boolean values, returning true if one of the values is true, false if both values are false	Value: True Value: False Result: True
Xor	Perform an Exclusive Or operation on two Boolean values, returning true if one and only one of the values is true	Value: True Value: True Result: False
False	Gets the Boolean value of false	Result: False
True	Gets the Boolean value of true	Result: True

Mathematical functions perform calculations, usually based on input values, and returns a result.

An item is selected and then added to the canvas or SmartForms field part by clicking the Add button or by using drag-and-drop.

Functions	Description	Example
Absolute	Gets the absolute value of a number	Input Value: -2 Result: 2
Format Number	Formats a number to a text representation using a specified numeric format specifier	Number: 0.111 Format: "C" Result: "$ 0.11"
Power	Gets one value raised to the power of another	Base: 2 Power: 2 Result: 4
Random	Gets a random number less than or equal to a specified maximum value	Maximum: 2 Result: 1
Root	Gets the positive nth root of a positive number	Number: 100 Nth Root: 2 Result: 10
Round	Rounds a number up or down to a value with a specified precision	Value: 1.111 Digits: 1 Result: 1.1
Round Down	Rounds a value down	Value: 1.15 Digits: 1 Result: 1.1
Round Up	Rounds a value up	Value: 1.15 Digits: 1 Result: 1.2
Square	Gets the square of a number	Number: 2 Result: 4
Square Root	Gets the square root of a number	Number: 100 Result: 10

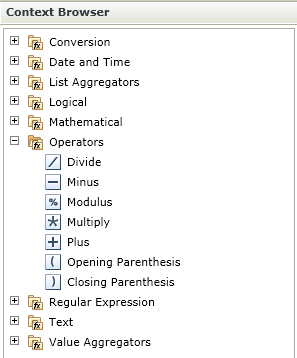

Operators perform calculations, usually based on input values, and returns a result.

An item is selected and then added to the canvas or SmartForms field part by clicking the Add button or by using drag-and-drop.

Functions	Description	Example
Divide	Divides two or more numbers or decimals	Input Value: 1.1 Result: 2
Minus	Subtracts two or more numbers or decimals	Input Value: 3.2 Result: 1
Modulus	Returns the integer remainder of a division	Input Values: 9. 3 Result: 3
Multiply	Multiplies two expressions of numbers or decimals	Input Values: 2. 5 Result: 10
Plus	Adds two or more numbers or decimals	Number: 1.1. Result: 2
Left Bracket	In a group expression, this marks the beginning of a sub expression	Example: (
Right Bracket	In a group expression, this marks the end of a sub expression	Example: )

Regular Expressions provide a powerful, flexible, and efficient method for processing text. A regular expression is a pattern that the regular expression engine attempts to match to input text.

An item is selected and then added to the canvas or SmartForms field part by clicking the Add button or by using drag-and-drop.

Functions	Description	Example
Matches	For doing a regular expression pattern match of a value. e.g. to check if the input value is a valid E-mail address. Parameters: Pattern(Text) Text Value(Text)	Example 1: Input: "Examples" Pattern: "\\b\\w+es\\b" Result: true Example 2: Input: "Example" Pattern: "\\b\\w+es\\b" Result: false Example 3: Input: "" Pattern: "[a-z]*" Result: true Note that * will always return a match Example 4: Input: "" Pattern: "[a-z]" Result: false Example 5: Input: "Examples" Pattern: "\\b\\w+es\\b" Result: true Matches words ending in 'es' Example 6: Input: "Example" Pattern: "\\b\\w+es\\b" Result: false Matches words ending in 'es'
Not Matches	For doing a regular expression pattern match of a value to be excluded. e.g. to exclude all members whose names begin with 'A'. Parameters: Text Value(Text) Pattern(Text)	Note that * will always return an empty result

Text functions perform operations such as concatenations or insertions on text. Text-based operations are 1-based, meaning that the index of the first character in a string is 1.

An item is selected and then added to the canvas or SmartForms field part by clicking the Add button or by using drag-and-drop.

Functions	Description	Example
Concatenate	Joins two text strings into one text string	Values: { "Street", "Region", "State" } Separator: ";" Result: "Street;Region;State"
Contains	Returns a true value if a substring is found within another string	Sequence: "12345" Text: "234" Result: True
Ends with	Returns True if a given string ends with the specified substring
Find	Returns the index if the specified string is found within another string. Returns 0 if no match can be found	Substring: "12345" Text: "234" Result: 2
Hyperlink	Creates a hyperlink with a display name and URL	Display Name: "K2" URL: "http://www.k2.com" Result: "<a href=http://www.k2.com> K2</a>"
Insert	Inserts a substring into a string at a specified position	Text: "Example" Substring: "00000" Position: 2 Result: "E00000xample"
Is blank	Returns True if a string is empty
Is not blank	Returns True if a string is not empty
Join	Concatenates a list of text values or fields, delimiting each with a separator	Values: { "1", "2", "3" } Separator: ";" Result: "1;2;3"
Left	Returns a subset of characters from the left side of a string	Text: "Test" Length: 1 Result: "T"
Length	Returns the length of a string	Text: "Test" Result: 4
Mid	Returns a subset of characters from a string, starting at a specified index and continuing to the end of the string	Text: "Example" Start: 3 Result: "xample"
Pad Left	Pads a string with a padding character on the left side up to a specified length	Source String: "Example" Pad Character: "#" Overall Length: 9 Result: "## Example "
Pad Right	Pads a string with a padding character on the right side up to a specified length	Source String: "Example" Pad Character: "#" Overall Length: 9 Result: " Example #"
Proper	Converts a string to proper case	Text: "the quick brown fox jumps over the lazy dog" Result: "The Quick Brown Fox Jumps Over The Lazy Dog"
Replace	Replaces a substring within a string with a new substring	Text: "Ex000le" Find: "000" Replace: " amp " Result: "Example"
Right	Returns characters from the right side of a string	Text: "Example" Length: 3 Result: "ple"
Starts With
To Lower	Converts a string to lower case	Text: "Example" Result: " example "
To Upper	Converts a string to upper case	Text: "Example" Result: " EXAMPLE "
Trim	Removes leading and trailing spaces and line breaks from a string	Text: " Example " Result: "Example"
URL Encode	Encodes a URL string	URL: "http://local.com/test url.asmx" Result: "http%3a%2f%2flocal.com%2ftest+url.asmx"
URL Decode	Decodes a URL string	URL: "http%3a%2f%2flocal.com%2ftest+url.asmx" Result: "http://local.com/test url.asmx"
Empty String	Returns an empty string	Result: "Blank"

Value Aggregators perform calculations, usually based on input values, and returns a number result.

An item is selected and then added to the canvas or SmartForms field part by clicking the Add button or by using drag-and-drop.

Functions	Description	Example
Average	Calculates the average of a collection of values	Input Values: { 1, 2, 3 } Result: 2
Maximum	Gets the maximum value of a list of values	Values: { 1, 2, 3 } Expected When Empty: 0 Result: 3
Minimum	Gets the minimum value of a set of values	Values: { 1, 2, 3 } Expected When Empty: 0 Result: 1
Sum	Gets the sum of a set of values	Values: { 1, 2, 3 } Result: 6
