MSMQ

MSMQ (Microsoft Message Queuing) is a messaging protocol that enables applications running on independent, physical servers to communicate in a failsafe manner. The method used to enable MSMQ for a K2 installation is dependent on how AD (Active Directory) has been configured for the domain. MSMQ Directory Service Integration is required for K2 blackpearl installations.

To install MSMQ in Windows Server 2012, follow the steps below:

	Open the Programs and Features window (Control Panel > Programs and Features)
	Click on the Turn Windows features on or off link

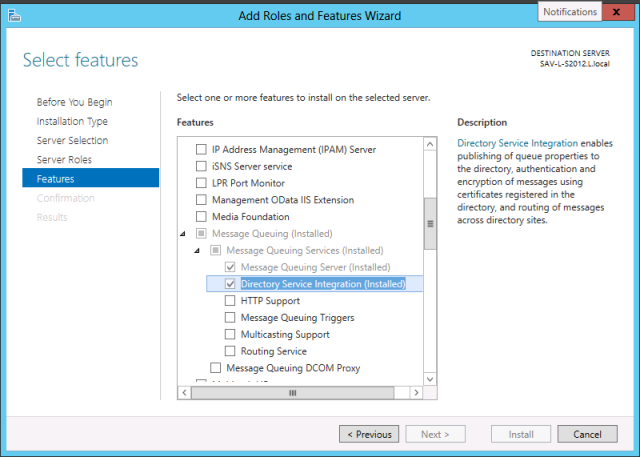

	Select the Destination Server from the Server Selection link, then click on the Add Features link
	Expand the Message Queuing node
	Select Message Queuing Services and sub-nodes Message Queuing Server and Directory Services Integration

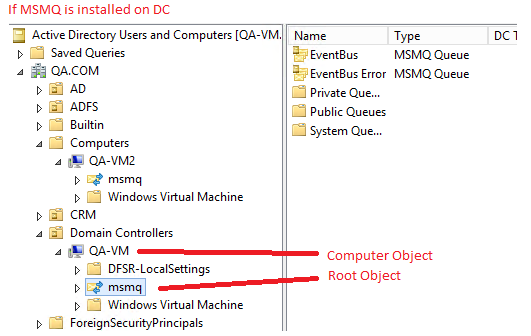

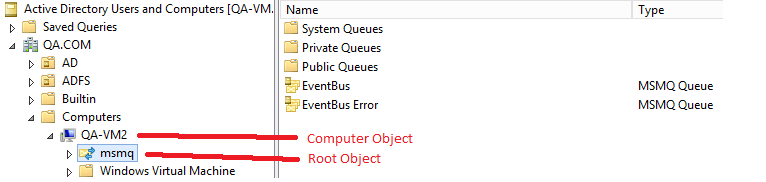

	Choose the appropriate permissions settings response (please read the Install Message Queuing topic in the Windows Server 2012 Help and take note of the two different methods for configuring permissions depending on whether the Windows Server computer is a domain controller or not) In Windows Server 2012, the permissions should be granted to the Root Object and not the Computer Object as in Windows Server 2008. If MSMQ is installed on Workgroup
	Click Next, then click Install
	Once the installation has completed, click on Close and restart the server

Post Installation Checks

Perform the following post installation steps to verify that MSMQ is configured correctly:

	Verify that the Workgroup registry key located under HKLM\Software\Microsoft\MSMQ\Parameters\ is set to 0
	Restart MSMQ
	Verify that MSMQ is running in Domain mode after this procedure
	In Computer Management confirm that Message Queuing has a node called Public Queues and that the K2Server Service account has rights to this folder

For further information regarding MSMQ and Windows Server integration view http://technet.microsoft.com/en-us/library/cc749102(WS.10).aspx
