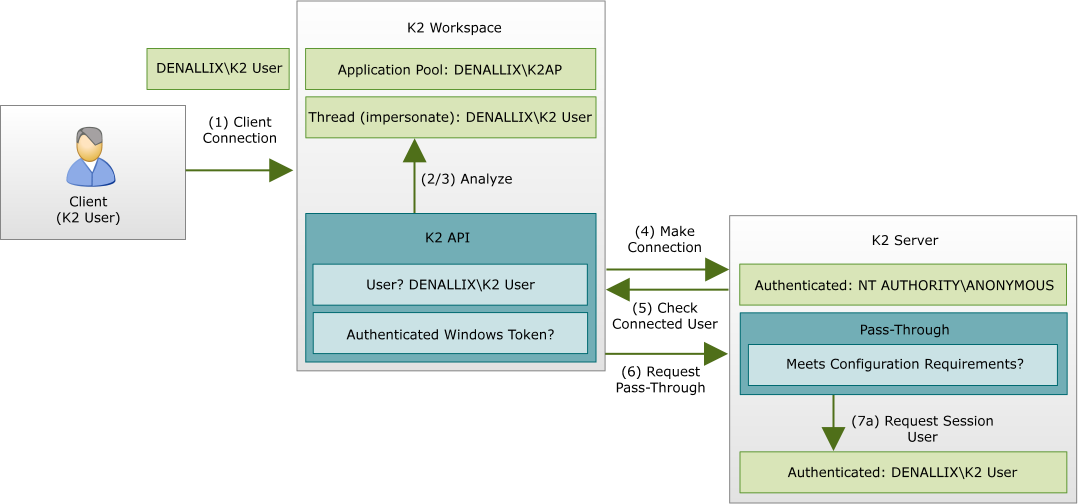

How K2 Pass-Through Authentication works

For K2 Pass-Through Authentication to function as securely as possible follows a protocol which is used to ensure that regardless of the manner in which the K2 Client APIs are used each valid authentication attempt is successful.

1. A client which may be a thick or lite client e.g. K2 Workspace makes a normal connection to the relevant K2 client API.


   This initial connection is secure even for custom applications as it’s all conducted internally

2. The K2 client API will analyze the current configuration (e.g. user context and threads) to ascertain who is the intended end user of the application
3. The user token is interrogated to ensure that it is a properly authenticated Windows token (e.g. against Active Directory).


   This process is to verify the ClientWindows configuration option

4. To initiate the process a connection is made to the K2 Server, just prior to K2 Pass-Through Authentication being performed
5. The relevant K2 client API will ask the K2 Server which client was authenticated, to determine if it’s different to the user calculated in step (2)
6. If there is a difference, then the K2 Client API will request K2 Pass-Through Authentication, and then send the K2 Server the user’s name, as well as passing in the result of (3)
7. From the K2 Server’s side and depending on the requirements of the configuration option (e.g. ClientWindows):
   1. If step (6) is successful, the K2 Server will switch its security context from the current user (e.g. the anonymous user) to the K2 Pass-Through Authentication user
   2. If unsuccessful, an error will be logged due to the fact that there is a configuration issue on the client (by the fact that K2 Pass-Through Authentication failed). Any further functionality will continue as the user (e.g. anonymous) as connected in step (4), including any connections to back-end systems.


      When configurable levels of trust are required for each server on an individual basis in a distributed environment, Kerberos should be considered as this feature is beyond the Scope of K2 Pass-Through Authentication.
