Update Document Properties step

Use the Update Document Properties step to update properties of a document. You can, for example, use the Update Document Properties step in a workflow to change the status of a document once it is approved.

To use the SharePoint steps in K2 Workflow Designer, you must have SharePoint installed in your environment. To see the version of SharePoint that K2 supports, view the Compatibility and Support Matrix.

Drag the Update Document Properties step from the SharePoint category, Favorites bar, or the Recent category onto the canvas.

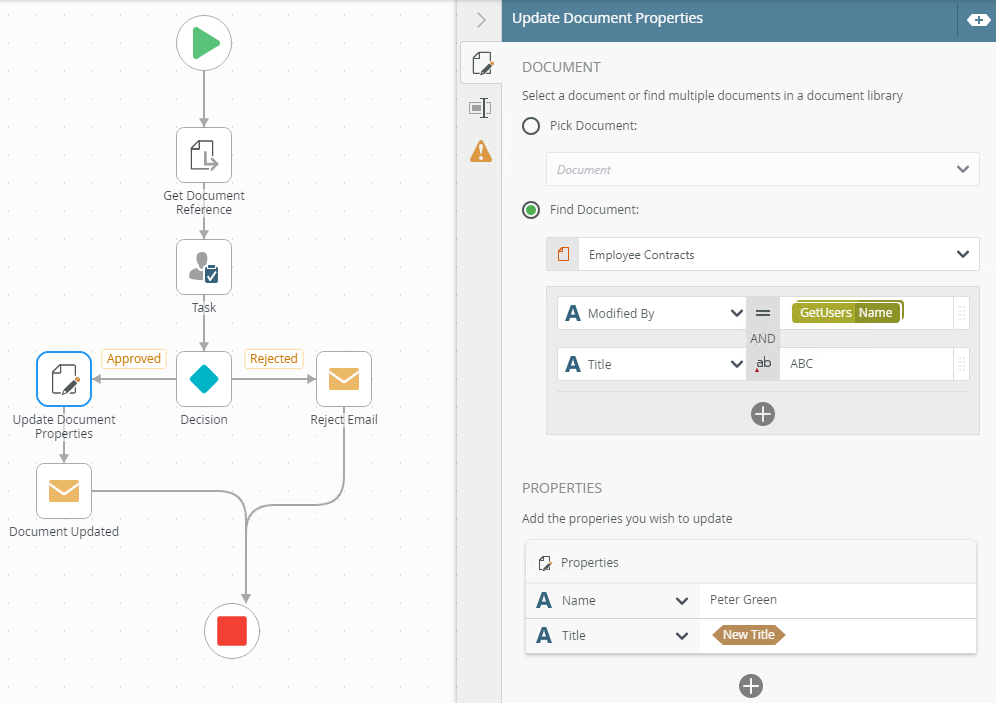

Example of an Update Document Properties step in a workflow

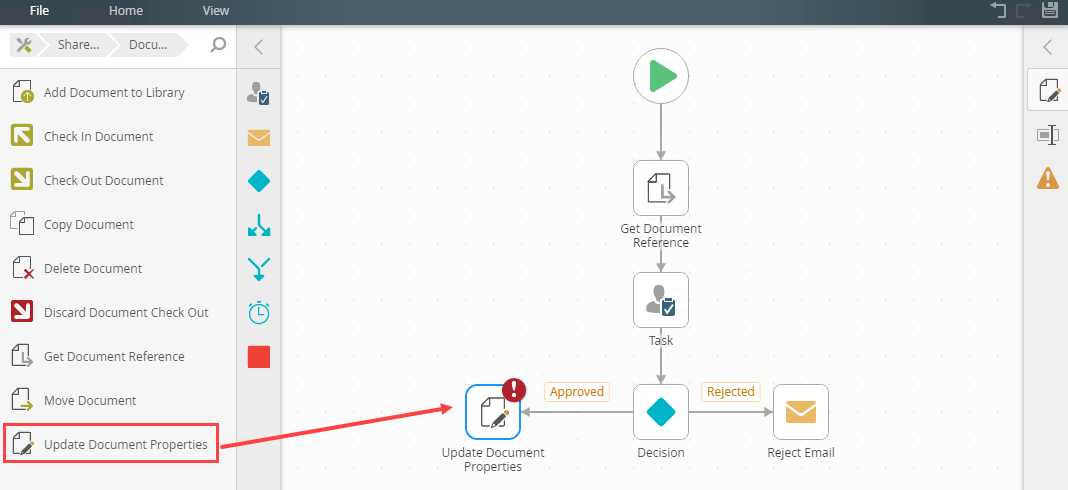

  1. From the Toolbox click the SharePoint category, the Document category and then drag the Update Document Properties step onto the canvas.
    2. For more information on how to use the error console, see the Error Console topic.

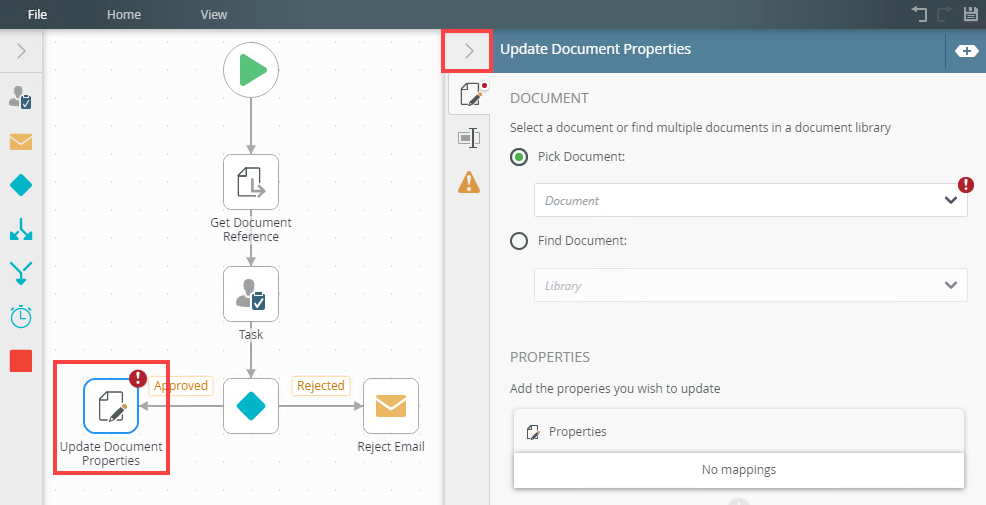

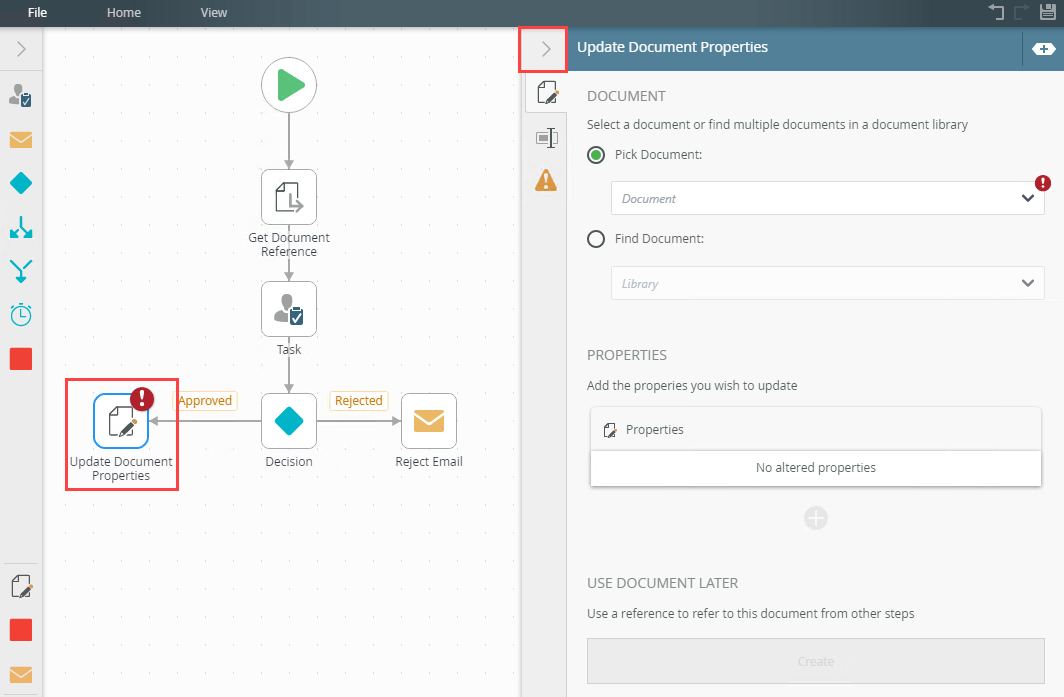

  2. Select the added step and click the expand / collapse toggle to expand the Configuration Panel. You can also double click the step to expand the panel.

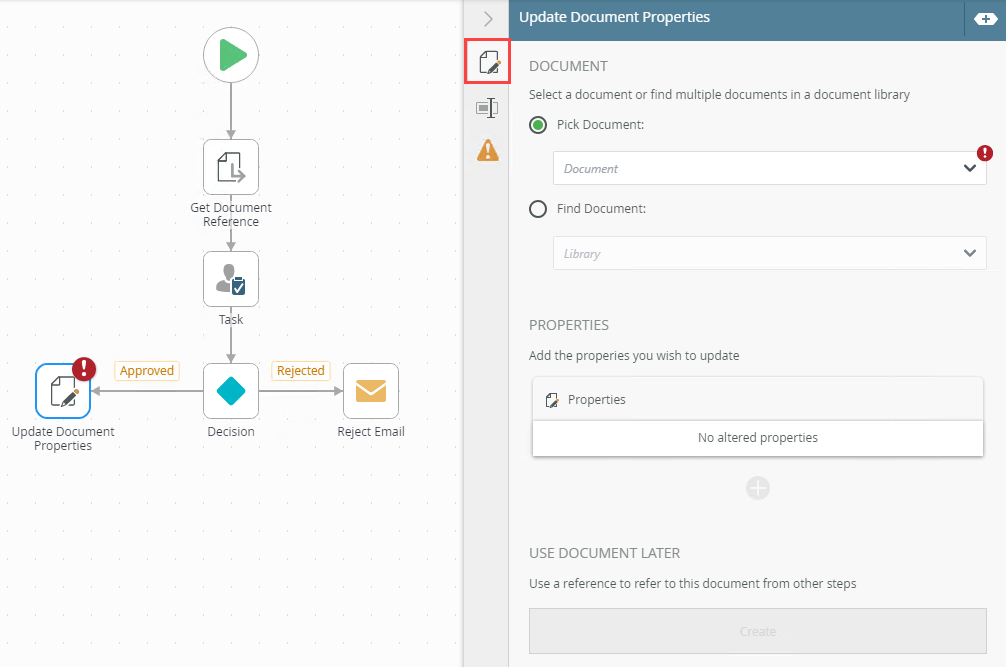

  3. Select the Update Document Properties tab. Use this tab to configure the document properties.

    4. The following table explains the options available on this tab:

    OptionExplanationHow to Use
    Pick Document

    Use this to pick a referenced document in this workflow. The menu contains a list of referenced documents in the workflow.

    If you don't see items in the menu, you need to create a SharePoint referenced item using a SharePoint reference step within the workflow.

    Select the Pick Document radio button to enable this option.

    Click the menu and select the reference name.

    Find Document

    Use this to browse to the document in a SharePoint library.

    		Click the Find Document radio button to enable this option.

    Click the menu and select Browse to browse to a specific one.

    Filters

    The filter allows you to specify parameters and filters to return data.

    Applying filters is optional. Use operators such as Equal, Not Equal, Starts With, Ends With, and Contains.

    Parameters are sometimes required - it depends on the SmartObject method selected. If the method has parameters, you probably need to provide values for those parameters to execute the method.

    Click the Add Filter link to add filters.

    Select filter values from the drop-down menu.

    Click the operator button to select the operator.

    Click Add to add additional filter properties

    Type values or create dynamic values by dragging Functions, Fields, SmartObjects and Workflow-related items from the Context Browser into the fields.

    To delete properties, select them and click the Trash bin.

    Properties

    Use this to set the filters to determine the document to be updated, and add field details to update the document with. Filter for specified values in one or more fields to identify the document. Type values or create dynamic values by dragging Functions, Fields, SmartObjects and Workflow-related items from the Context Browser into the fields.

    When a SmartObject load method property is used, an input property is required for the correct information to load.

    Click Add to add a property.

    Click the menu to select the property. Type values or create dynamic values by dragging Functions, Fields, SmartObjects and Workflow-related items from the Context Browser into the fields.

    To delete properties, select them and click the Trash bin.

    Use Document LaterUse this to create a reference to use from other steps within the workflow.

    Click the Create link to create a reference.

    Click the Edit link to edit the reference name. If you edited the reference name and want to reset it, click the Reset Name link.

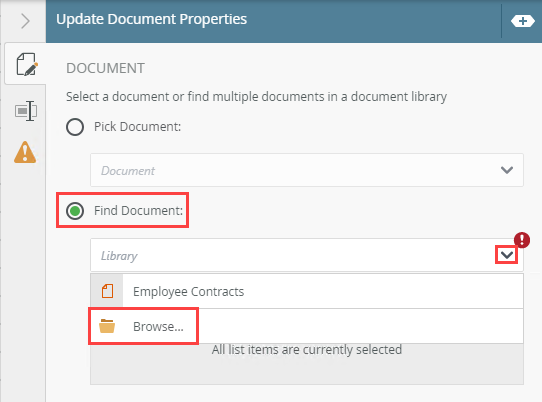

  4. From the Document section select either Pick Document (select a referenced document from the menu) or Find Document (browse to the document). In this example, select Find Document. From the menu click Browse and navigate to a location of the document.

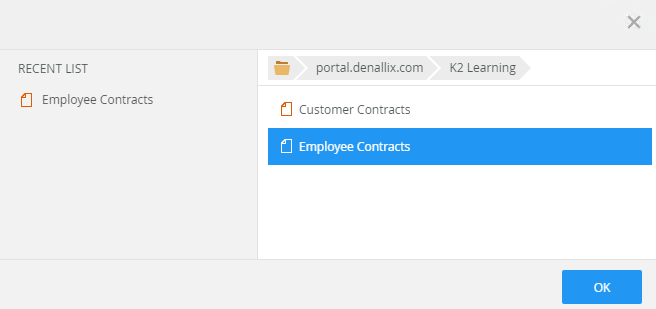

  5. Select the library and click OK.

    6. For more information about the different browse states and errors, see the Browse States topic.

    For more information on how to use the breadcrumb bar, see the How to use the Breadcrumb topic.

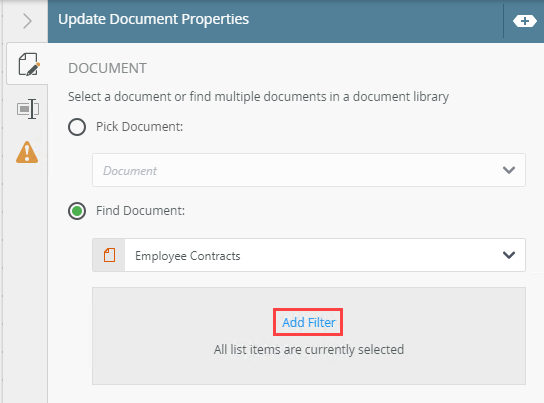

  6. Select the library and click the Add Filter link to specify parameters and filters.
    7. Applying filters is optional. Parameters depend on the SmartObject method and are sometimes required. The filter may have a positive impact on performance by limiting the number of records returned. When you create a filter, only records that match the filter criteria are returned.

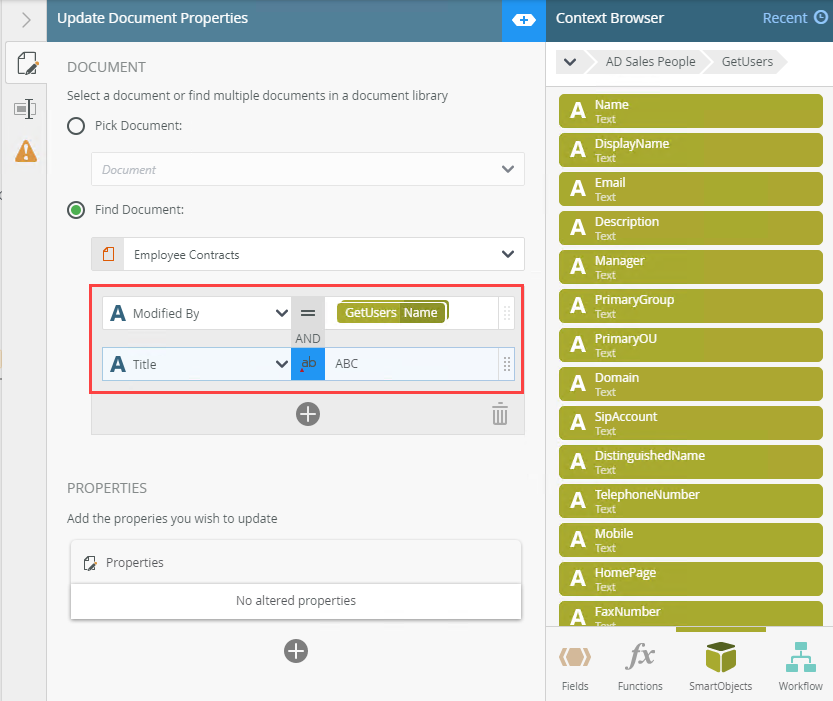

  7. Select a property from the menu. Select an operator to define the filter. Type values or create dynamic values by dragging Functions, Fields, SmartObjects and Workflow-related items from the Context Browser into the fields.

    8. For more information on how to use Smartfields see the Smartfield Composer topic. Added filters can be grouped together to form parameters. To group parameters, click the AND button.

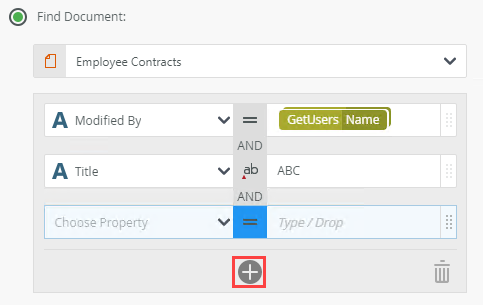

  8. In the Filters section, click Add to add a property.

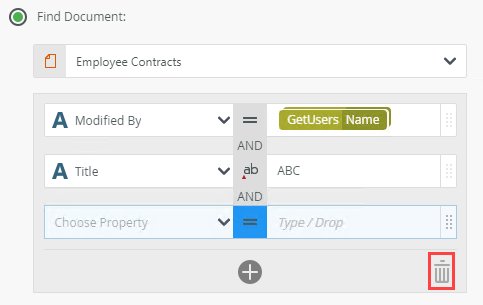

  9. To delete properties, select them and click the Trash bin.

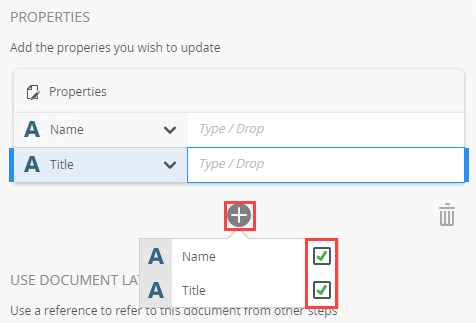

  10. In the Properties section add fields and values to update the document with. Click the Add button.

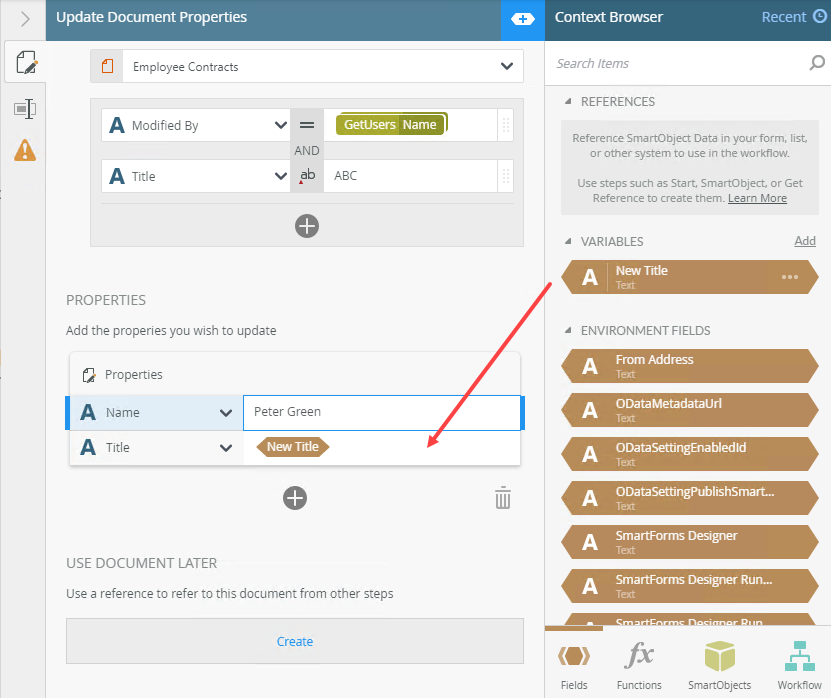

  11. Select a property from the menu. Type values or create dynamic values by dragging Functions, Fields, SmartObjects and Workflow-related items from the Context Browser into the fields.

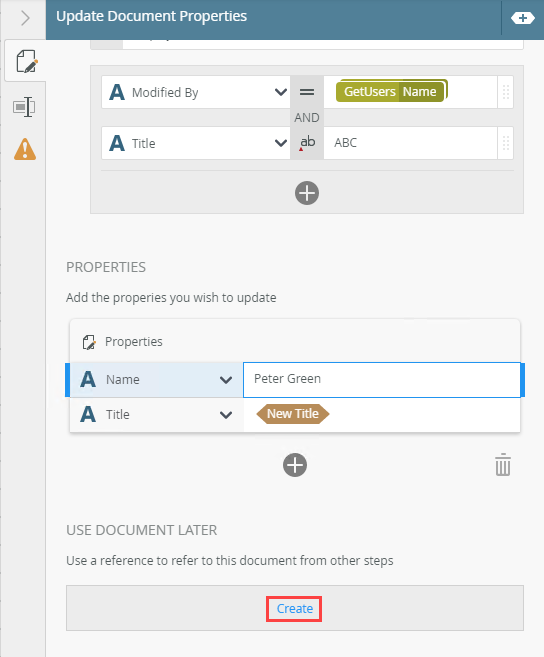

  12. To create a reference click Create. Reuse this reference in the current step or from another step in your workflow.

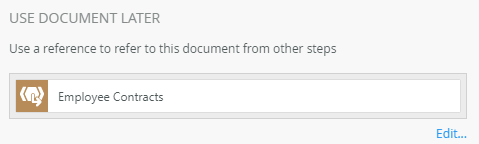

  13. To edit the auto-generated reference title, click Edit.

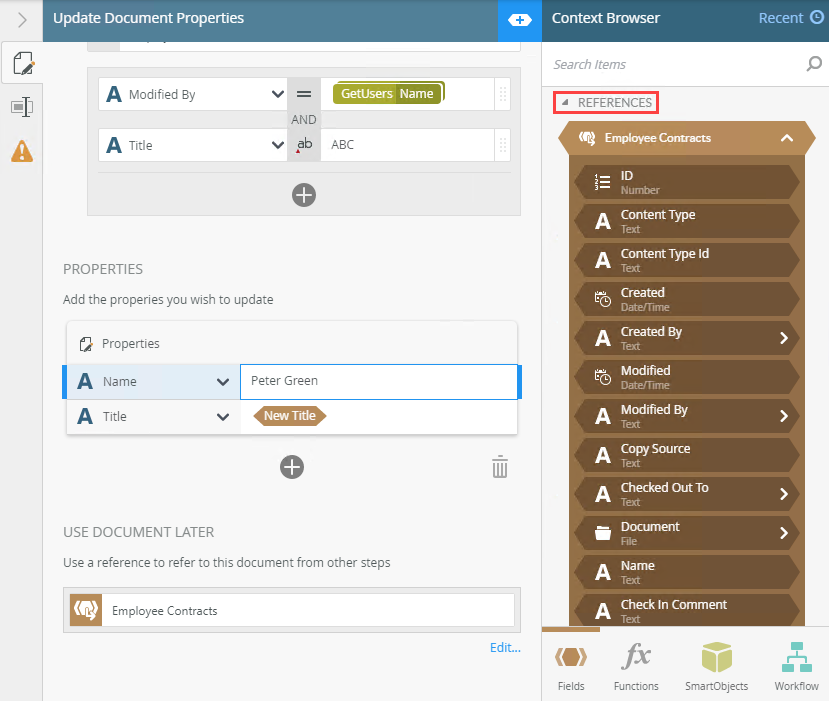

  14. To locate the added reference, expand the Context Browser, select Fields and then expand the Reference section.

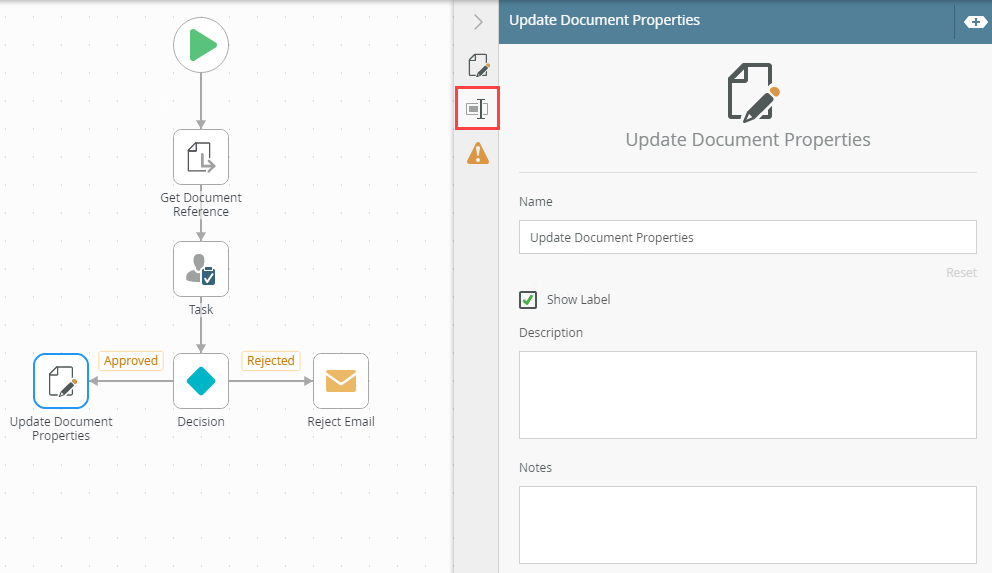

  15. With the step selected, select the Properties tab.

    16. The following table explains the options available on this tab:

    OptionExplanationHow to Use
    Title / NameBy default, each step on the canvas has a step title. You can change this title to suit your workflow logic and show it on the canvas by checking the Show Label box.Enter a value into the Title/Name field.
    Reset linkUse the link to reset any changes to the title.Click the Reset link to reset the Title/Name field to default value.
    Show LabelAllows you to see the step label on the canvas. The label shows the value of the title.Check the check box to display step label on the canvas.
    DescriptionAllows you to add a detailed description for the step.Enter a value into the Create New field.
    NotesAllows you to add additional notes for the step.Enter a value into the Notes field.

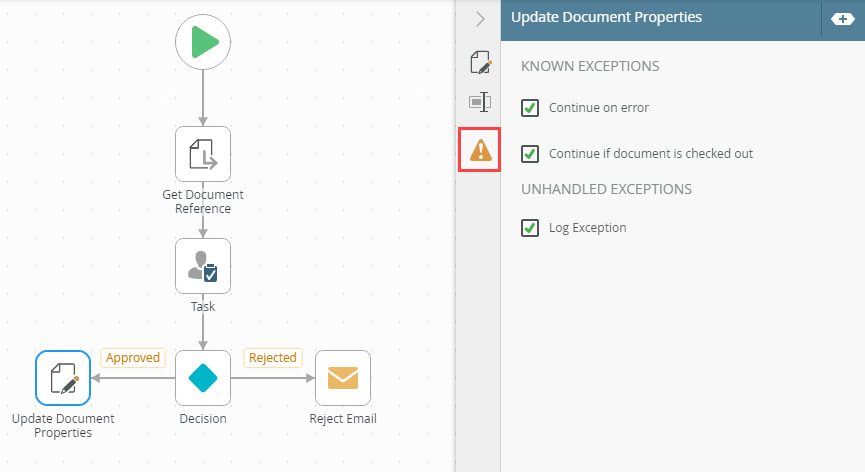

  16. Click the Errors tab.

    17. Different types of exceptions can occur on a step, such as:

    TypeDescription
    Known exceptionsAny SmartWizard or standard wizard that has Boolean options for handling known exceptions have these options displayed as check boxes in the Known exceptions section of the Exceptions tab.
    Unhandled exceptionsAny unknown runtime exceptions.

    The tab contains the following known exception:

    ExceptionExplanationHow to Use
    Continue on errorOn step execution and an error occurs, continue to the next step in the workflow.Check the check box to continue the workflow.
    Continue if document is checked in

    On step execution and the added document is checked in, the following options are available:

    • If the option is selected - the instance continues to the next step in the workflow.
    • If the option is not selected - Runtime exception error occurs.
    		Check the check box to continue to the next step if document is checked out.

    Uncheck the check box causes Runtime exception error.

    The tab contains the following unhandled exception:

    ExceptionExplanationHow to Use
    Log ExceptionLogs the exception to the error log.Check the box to log the exception.

  17. Your changes are automatically saved.

For more information on how to configure a Recursive Search Filter see the How to configure a Recursive Search Filter for SharePoint Lists and Libraries in the K2 Workflow Designer knowledge base article (KB002074).
