Delete Library step

Use the Delete Library step to delete a library from a SharePoint site. You can, for example, use the Delete Library step to delete a temporary SharePoint library created for a project that has ended.

To use the SharePoint steps in K2 Workflow Designer, you must have SharePoint installed in your environment. To see the version of SharePoint that K2 supports, view the Compatibility and Support Matrix.

Drag the Delete Library step from the SharePoint category, Favorites bar, or the Recent category onto the canvas.

Example of a Delete Library step in a workflow

How to add a Delete Library step

From the Toolbox click the SharePoint category, the Libraries category and then drag the Delete Library step onto the canvas.

Error Console

Select the added step and click the expand / collapse toggle to expand the Configuration Panel. You can also double click the step to expand the panel.
Select the Delete Library tab. Use this tab to configure the library properties.

The following table explains the options available on this tab:

Option	Explanation	How to Use
Pick Library	Use this to pick a library reference in the workflow. The menu contains a list of document libraries. If you don't see items in the menu, you need to create a SharePoint referenced item using a SharePoint reference step within the workflow.	Select the Pick Library radio button to enable this option. Click the menu and select the reference name.
Find Library	Specify the site and filters to define a library for the reference, and provide a name for the reference. If no reference is available to select from the Pick Library menu, browse to the Site on a registered SharePoint Site Collection.	Click the Find Library radio button to enable this option. Click the menu and select Browse to browse to a specific one.
Filters	The filter allows you to specify parameters and filters to return data. Applying filters is optional. Use operators such as Equal, Not Equal, Starts With, Ends With, and Contains. Parameters are sometimes required - it depends on the SmartObject method selected. If the method has parameters, you probably need to provide values for those parameters to execute the method.	Click the Add Filter link to add filters. Select filter values from the drop-down menu. Click the operator button to select the operator. Click Add to add additional filter properties Type values or create dynamic values by dragging Functions, Fields, SmartObjects and Workflow-related items from the Context Browser into the fields. To delete properties, select them and click the Trash bin.
Recycle Bin	Select this to place deleted items in the Site Recycle Bin. Items in the bin can be restored. Note that if the SharePoint list or library exist on a subsite, the deleted item is placed in the main recycle bin of the site collection. When this option is not selected, deleted items are immediately deleted and cannot be restored.	Check or uncheck the Sent items to recycle bin check box.

From the Library section select either Pick Library (select a referenced library from the menu) or Find Library (browse to the site). In this example, select Find Library. From the menu select Browse and navigate to a site to add the library.
Select a site and click OK.

For more information about the different browse states and errors, see the Browse States topic.

For more information on how to use the breadcrumb bar, see the How to use the Breadcrumb topic.

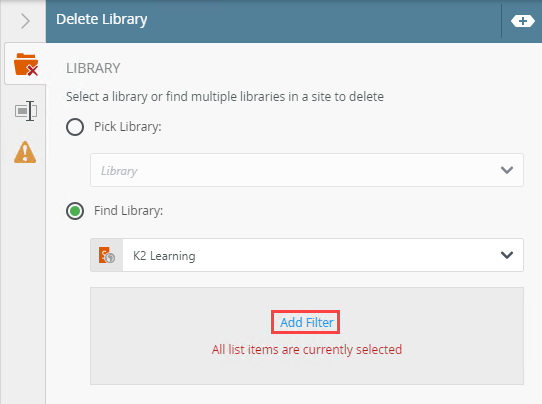

Click the Add Filter link to specify parameters and filters.

Select a property from the menu. Select an operator to define the filter. Type values or create dynamic values by dragging Functions, Fields, SmartObjects and Workflow-related items from the Context Browser into the fields.

For more information on how to use Smartfields see the Smartfield Composer topic. Added filters can be grouped together to form parameters. To group parameters, click the AND button.

In the Filters section, click Add to add a property.
To delete properties, select them and click the Trash bin.
From the Recycle Bin section select whether to send items to the recycle bin (checked by default).
With the step selected, select the Properties tab.

The following table explains the options available on this tab:

Option	Explanation	How to Use
Title / Name	By default, each step on the canvas has a step title. You can change this title to suit your workflow logic and show it on the canvas by checking the Show Label box.	Enter a value into the Title/Name field.
Reset link	Use the link to reset any changes to the title.	Click the Reset link to reset the Title/Name field to default value.
Show Label	Allows you to see the step label on the canvas. The label shows the value of the title.	Check the check box to display step label on the canvas.
Description	Allows you to add a detailed description for the step.	Enter a value into the Create New field.
Notes	Allows you to add additional notes for the step.	Enter a value into the Notes field.

Click the Errors tab.

Different types of exceptions can occur on a step, such as:

Type	Description
Known exceptions	Any SmartWizard or standard wizard that has Boolean options for handling known exceptions have these options displayed as check boxes in the Known exceptions section of the Exceptions tab.
Unhandled exceptions	Any unknown runtime exceptions.

The tab contains the following known exception:

Exception	Explanation	How to Use
Continue on error	On step execution and an error occurs, continue to the next step in the workflow.	Check the check box to continue the workflow.

The tab contains the following unhandled exception:

Exception	Explanation	How to Use
Log Exception	Logs the exception to the error log.	Check the box to log the exception.

Your changes are automatically saved.
