How To: Exclude a Previous Approver from a Task

A maker-checker authorization model consists of a two-person approval flow, where one person initiates a transaction and a second person completes it. The key principle in a maker-checker model is that the first and second task participants cannot be the same person.

Consider a workflow with two task steps. You use a role (of approvers) for the first task's recipients. For the second task step, you configure the TaskAllocationRoleMethods SmartObject > Get Role Peers method to return a list of same role members but without the member who responded to the first task.

Calling a SmartObject method for a task recipient
Call Method Example

Scenario

You work in a financial institution that uses the maker-checker authorization model for checks and deposits. For security reasons, one person initiates (makes) a transaction and a second person completes (checks) it. For the task recipients, you use a role consisting of staff members authorized to make and check transactions.

Steps

In this scenario, you create a role of transaction approvers. You create a workflow consisting of two task steps (Maker Step and Checker Step). You use the role for both task's recipients. However, for the second task, you call a system SmartObject method that removes the first task's role member from the list of approvers. In this way, the same role member cannot approve both tasks.

Setup Steps

The following steps set up the scenario from start to finish. If you want to skip the setup steps and view the topic step, go to Call a SmartObject Method for a Recipient Value.

From the K2 Management site, create a role called Maker Checker Approvers and add three members. If you are working on a K2-provided VM, add Codi Kaji, Bob Maggio, and Denallix Administrator as the role members. If working in your own environment, add three members that are available to help you test the application.
The instructions in this article reflect a K2-provided VM environment. If you are working in a cloud environment or within your own system, you may need to make some adjustments (such as role members), so they are specific to your environment.
1. Launch the K2 Management site.
  If you do not know how to access the K2 Management site, see Accessing K2 Sites.
2. Expand the Users node, then click Roles. You see a list of current roles in the central pane. Click the New icon. (Your list of roles may not match the image below.)
  A role is a group of users for a specific use. For example, you may have a role of approvers for workflow tasks or perhaps a group that has custom permissions.
3. Name the role
  Maker Checker Approvers.
4. Add the first member to the role. In the search box, enter
  Codi
  then click the Search button. Select Codi's name after you see it in the results pane and click Add. Codi is now listed as a role member.
5. Repeat the step above and add Bob Maggio and Denallix Administrator. There are now three members in your role. Click OK to save and exit.
  On a K2-provided VM, you are logged in as Denallix Administrator. By adding yourself to the role, you become the workflow originator later on which simplifies testing.
Launch K2 Designer in a new tab. Create a new workflow called Maker Checker Workflow. (Optional: Add categories to keep your work organized. For example All Items > How To > Maker Checker Sample.)
1. Open a new browser tab and launch K2 Designer from the Favorites bar. On the designer landing page, click Browse.
2. To keep your work organized, add categories (folders). Expand the All Items node. Right-click All Items and click New Category. Name the new category
  How To.
  Add another category to How To and name it
  Maker Checker Sample.
3. Right-click the Maker Checker Sample category and select New Workflow. Be sure you do not select the legacy workflow option.
4. Name the workflow
  Maker Checker Workflow
  and click Create.

Add a Task step to the empty placeholder. Use the table below as a guide for configuring the step. Add a Decision step and connect it to the Task step.

Property	Value	Notes
Task Tab
Action	Transaction Created	There is only one action for this demonstration.
Recipients Tab
Recipient	Maker Checker Approvers	You assign the task to the Maker Checker Approvers role. K2 creates a task for each role member. After one member actions the task, K2 removes the remaining assigned tasks.
Properties Tab
Name	Maker Step

Expand the Toolbox > Basic node, then drag a Task step into the empty placeholder below the Start step. (The Start step has the green triangle.)

Notice the red warning badge on the Task step. This badge indicates there are required settings in the Configuration Panel. When you expand the panel, you see the same badge next to the required settings.

With the Task step selected (selected steps have a blue border), expand the Configuration Panel.
Begin with the Task tab active (if it is not already). Locate the Actions section and click the Add (+) icon. Enter
Transaction Created.
This is the only decision option for the task recipient. (Typically, you would have more than one option such as Approve and Reject.)

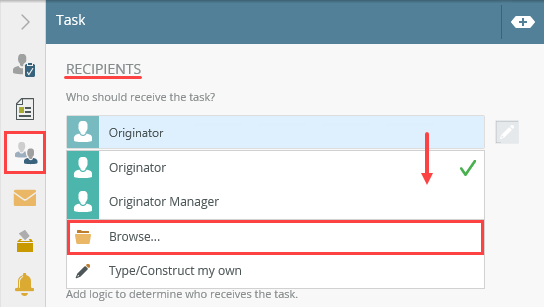

Click the Recipients tab. The default recipient is Originator. However, you want to assign the task to the Maker Checker Approvers role. In this case, K2 creates a task for each member of the role. After one member actions the task (completes it), K2 removes the remaining tasks assigned to the other members. Click the Originator bar and select Browse.
In the Select User search box, enter
maker
then select the Maker Checker Approvers role when you see it. Click OK.
Click the Properties tab. Rename the step
Maker Step
then collapse the Configuration Panel by clicking the slider.
From the Toolbox > Logic node, add a Decision step below the Maker Step. Connect the two steps. The Decision step generates outcome lines for each task action. In this case, there is only one action, Transaction Created, resulting in one outcome line. (The Decision step allows you to configure decision rules as well, in addition to generating outcome lines.)
To return to the Toolbox main menu, click the Toolbox icon in the breadcrumb bar.
To connect two steps, hover over a border on the first step until you see a handle. Click and drag the handle into the second step. Click the design canvas to set the line.

Your workflow should look like the image below.
Workflow Partial One

From the Toolbox > Basic node, layer a Set Variables step with the Maker Step. From the Configuration Panel create a new Variable named PreviousApprover for the Pick Variable value. Map the system Workflow > Task User > FQN property to the PreviousApprover variable.
Next, you add a set variable step that stores the responding role member's name. This variable contains the name you want to remove from the role member list for the second task. (Remember the maker-checker model states the same person cannot action both tasks.) The key to adding this step is to layer (or stack) it with the Maker Step. In this way, system variables from the task step (such as the Fully Qualified Name (FQN) of the responding role member) are exposed to the set variable step.
1. From the Toolbox > Basic node, drag a Set Variables step and drop it on top of the Maker Step, so that the two steps are layered.
2. With the Set Variable step selected, expand the Configuration Panel. Click the Pick Variable drop-down and select Create New.
3. Name the variable
  PreviousApprover
  and click OK.
4. Next, map the system property containing the name of the task user to the PreviousApprover variable. Begin by expanding the Context Browser.
5. Click the Workflow tab near the bottom right of your screen. Expand the Task User node. Drag the FQN property (Fully Qualified Name, such as K2:Denallix\Bob) into the variable text box.
  The Workflow tab contains system variables for active steps. Since you layered the Set Variables step with the Maker Step, system variables for the task step are exposed to the variables step. If you do not layer the steps, the task step variables are hidden and unavailable for use.
6. Collapse the Configuration Panel. Collapse the layered steps by clicking the arrow in the upper left corner of the steps.
(Optional) Add a Toolbox > Basic > Send Email step that contains the PreviousApprover variable in the message body. During testing, you can see the value passed from the system Task User > FQN property to the PreviousApprover variable. This value is the FQN of the role member who actioned the Maker Step task.
1. From the Toolbox > Basic node, drag a Send Email step so that it aligns with the Transaction Created outcome. Connect the outcome to the step. Make sure the step is active and expand the Configuration Panel.
2. With the Send Email tab active, keep the default To value, Originator. For the Subject line, enter
  Previous Approver Value
  and for the message Body, enter
  Task User > FQN:
3. Expand the Context Browser. Click the Fields tab. Drag the PreviousApprover variable into the message Body. At runtime, K2 replaces the variable with the actual FQN value of the Maker Step approver. Collapse the Configuration Panel.

Call a SmartObject Method for a Recipient Value

The next step describes how to add a task step, then call a SmartObject method for the recipient value. The system SmartObject method you use requires two input properties: Role Name and User Name. You manually enter the role name, then use the PreviousApprover variable for the user name. When executed, the method returns a list of role members and removes the member matching the variable. K2 assigns the second task to the remaining role members. In this way, you are blocking the first task's responding role member from participating in the second task.

Add a Task step to the design canvas and connect it to the email step. For the recipient, call the TaskAllocationRoleMethods > Get Role Peers SmartObject method. For the Role Name, enter Maker Checker Approvers. Use the PreviousApprovers variable for the User Name value. Make sure the Recipient scope is User. Rename the step Checker Step. Add and connect a Decision step.
1. From the Toolbox > Basic node, drag a Task step below the Send Email step. Connect the two steps.
2. Select the Task step and expand the Configuration Panel. With the Task tab active, add the following action:
  Transaction Complete
3. Click the Recipients tab. The default value is Originator, which you replace with a call to a SmartObject method. Click the Originator bar and change it to Type/Construct my own.
4. Remove the default value. (Click to the right of the variable and backspace until it disappears.)
5. Expand the Context Browser. Click the SmartObjects tab. Expand the Task Allocation > TaskAllocationRoleMethods > Get Role Peers node. Drag the User Name method into the recipient text box.
6. The Edit SmartField pane opens. This method requires two parameters for it to execute. For the Role Name, enter
  Maker Checker Approvers
  and for the User Name, switch to the Fields tab and drag the PreviousApprover variable into the text box.
7. Change the call scope from First item where... to All items as a collection. You want to return a list of all role members, not just the first member. Click the Exit icon to continue.
8. The last configuration for the Recipient is to make sure the scope is set to User. Click the scope icon on the recipient bar. Select User. This returns a list of all role members separated by a delimiter. K2 assigns a task to each role member defined. Selecting Group or Role results in a workflow error when using the method call.
9. Click the Properties tab. Change the name to
  Checker Step
  then collapse the Configuration Panel.
10. Next, from the Toolbox > Logic node, add a Decision step and connect it to the Checker Step.
11. The last workflow configuration is to add a final Send Email step. This provides an end to the workflow process and lets you know the workflow completed without error. From the Toolbox > Basic node, drag a Send Email step onto the design canvas and connect it to the Decision step.
12. Select the Send Email step and expand the Configuration Panel. Enter your own content for the Subject and message Body. Collapse the Configuration Panel.
Deploy the workflow.
Before you can use the workflow, you must deploy it to the K2 server. Deploying the workflow publishes it and makes it available for use. If you make any changes to the workflow, you must deploy it again so that K2 records the changes.
1. Click File > Deploy. When you see the success dialog, click Hide to close the dialog. You are ready to begin testing!
Start an instance of the Maker Checker Workflow from the K2 Management site. Confirm each Maker Checker Approvers role member receives a task notification email for the Maker Step. Action one member's task. (You can do this using their K2 Workspace or from their task email.) Confirm the remaining role members receive a task notification email for the Checker Step. If successful, the first task respondent should not receive another email for the second task.
To test this application, you need access to each role member's K2 Workspace site or their email. The images below reflect a K2-provided VM. If working in another environment, your screens and users may not match exactly.
1. Begin by opening K2 Workspace for Codi. (Recall the Maker Checker Approvers role members are Codi, Bob, and Administrator.) Use the User Shortcuts in the lower left corner of your screen to open Codi's IE. (Codi is in the Human Resources group.)
2. Once IE opens, click the K2 Workspace link in the Favorites bar to launch an instance of Workspace in her name.
3. Click Inbox to expose any Maker Checker Workflow task notification emails. (As you have not started an instance of the workflow yet, there should not be any emails.)
4. Repeat the steps above and launch Bob's Inbox on K2 Workspace. (For the User Shortcuts, Bob is in the Finance group.) Once again, Bob should not have any Maker Checker Workflow emails just yet.
5. Return to the instance of IE for Administrator. If Workspace is not already open, use the Favorites bar to launch it in a new tab. Access the Inbox. Open another tab in IE and launch OWA. (OWA is the email client.) The login for OWA is
  User name: Denallix\Administrator
  Password: K2pass!
  then click sign in.
  To recap, for testing you should have the following environments accessible:
  - Codi's Inbox on K2 Workspace
  - Bob's Inbox on K2 Workspace
  - Administrator's Inbox on K2 Workspace
  - Administrator's OWA
6. Begin by starting a new instance of the Maker Checker Workflow. You should still have the K2 Management site open in Administrator's IE. (If not, open it from the Favorites bar.) From the K2 Management site menu, expand the Workflow Server > Workflows node. Navigate to the Maker Checker Workflow. (Your menu structure may be different than the image below depending on your category names.) Select the workflow, then click the Start New button in the central pane.

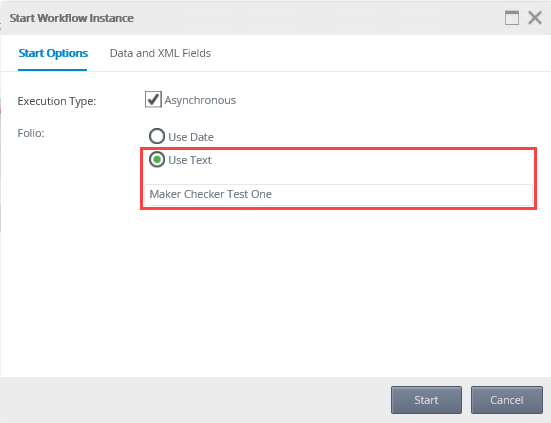

7. You can leave the default values as is, or you can change the Folio to a more meaningful instance name. Click Start. Click OK for the confirmation dialog.
8. Switch to Administrator's K2 Workspace tab. Click the Refresh icon at the bottom of the page. Confirm there is a task notification email for the Maker Step.
9. Click on Codi's instance of IE. Click the Refresh icon. Confirm you see the same email as Administrator's.
10. Click on Bob's instance of IE. Click the Refresh icon. Confirm you see the same email as Administrator's. Note that all three role members have a task assigned to them from the Maker Step task.
11. Return to Administrator's Workspace. Click the email title to open the task in the central pane. Use the Action drop-down to select Transaction Created. Click Submit. Click OK for the confirmation dialog. You (as Administrator) are the role member taking action on the first task (Maker Step).
12. If you included the Send Email step, switch to Administrator's OWA. Locate the email with the title Previous Approver Value and review the message. Notice the Task User > FQN system variable returned is K2:Denallix\Administrator.
13. Switch to Codi's Workspace and click the Refresh icon. Notice the first task, Maker Step, is no longer there. You now see a task notification email for the second task, Checker Step. (Remember, Codi and Bob are the remaining role members; both are assigned the task.)
14. Refresh Bob's Workspace Inbox. You should only see the second task email, Checker Step.
15. Refresh Administrator's Workspace Inbox. There are no tasks. The demonstration is complete as Administrator is not returned as a role member for the second task.

Review

The maker-checker authorization model is one option for providing extra security to transactions, particularly in a financial environment. One key point of this principle is that the same person cannot make and check the same transaction. Use the TaskAllocationRoleMethods system SmartObject to call a list of role members. You can configure this method to remove a previous task recipient from the list, allowing you to use the same role for multiple tasks in a maker-checker workflow.
