How To: Configure cascading drop-down list controls

This topic explains how to configure 'cascading' list controls. This example uses three drop-down list controls, where the list item selected in the first control acts as a filter for the list items displayed in the second control. The list item selected in the second control acts as a filter for the list items displayed in the third control.

This how-to uses properties in SmartObjects to configure filtering in the data source, rather than associations between SmartObjects. For examples on using associations between SmartObjects, see: Create views to capture data for associated SmartObjects and Configure the Picker control to use another control's data to filter the results.

Cascading drop-down list controls

Try it yourself!

Scenario

Your organization has a form requiring you to select a state, county, and city. You use cascading drop-down list controls for the location values. You configure the controls so that the county drop-down list displays values related to the state selected and the city drop-down list displays values related to the county selected.

Steps

In this scenario you build the following:

  • Three SmartObjects to store information for states, counties, and cities.
  • An editable list view to enter data for each SmartObject.
  • An item view with three drop-down list controls configured to show cascading data.

You use views to create records for the cities, counties, and states in SmartObjects. The state SmartObject is the parent to the county SmartObject, while the county SmartObject is the parent to the city SmartObject. Each child SmartObject has a property that references a unique identifier in its parent SmartObject. It's this property that filters the list items displayed in the child controls.

Prior to working through this how-to, you should know how to work with the category system and add elements such as SmartObjects and views. If you do not know how to build the basic application elements, see: Getting Started (with K2 Designer).

Setup Steps

The following steps set up the scenario from start to finish. If you want to skip the setup steps and view the topic step, go to Configure the cascading drop-down list controls.

  1. From K2 Designer, create the SmartBox SmartObjects (and properties) listed below.
    State: The State SmartObject stores a list of states.
    Property NameData Type
    IDAutonumber
    State NameText
    County: The County SmartObject stores a list of counties. You assign a State ID value from the State SmartObject to the StateID property in the County SmartObject. In this way, you can use the State ID property to filter the counties displayed in the drop-down list.
    Property NameData Type
    IDAutonumber
    StateIDNumber
    County NameText
    City: The City SmartObject stores a list of cities. You assign a County ID value from the County SmartObject to the CountyID property in the City SmartObject. In this way, you can use the County ID property to filter the cities displayed in the drop-down list.
    Property NameData Type
    IDAutonumber
    CountyIDNumber
    City NameText
    1. In K2 Designer, create categories to keep your work organized (optional).
    2. Create the first SmartBox SmartObject and name it
      State
      then add the following property:
      State Name (Text)
    3. Your SmartObject should look like the image below. Click Finish to save and exit the SmartObject.
      State SmartObject
    4. Create the next SmartBox SmartObject and name it
      County
      then add the following properties:
      StateID (Number)
      County Name (Text)
      Click Finish to save and exit the SmartObject.

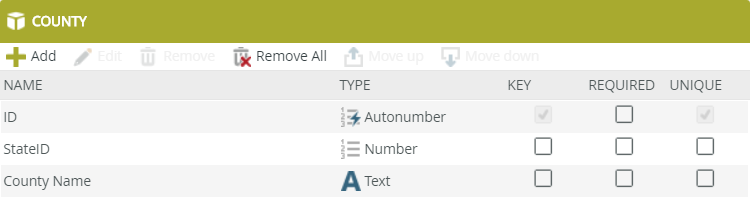

      County SmartObject
    5. Create the last SmartBox SmartObject and name it
      City
      then add the following properties:
      CountyID (Number)
      City Name (Text)
      Click Finish to save and exit the SmartObject.

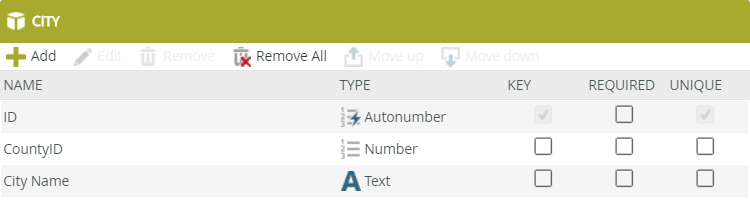

      City SmartObject

      6. Now that you have your three SmartObjects, the next step is to add data. In the next step, you generate views based on each SmartObject, then use the views to add data.

  2. Generate an edible list view for the State, County and City SmartObjects (you are generating three views). After you generate the views, run each view and add records to each SmartObject. Remember that the StateID property in the County SmartObject must match an existing ID from the State SmartObject. The CountyID property in the City SmartObject must match an existing ID from the County SmartObject.
    1. Right-click the State SmartObject and select Generate Views.
    2. Check the box below Editable List to create the State Editable List view. Click OK.
    3. Run the view by right-clicking it and selecting Run.
    4. The view opens in the central pane.
    5. Enter state records using the image below for reference. Click Add and type a value in the State Name field. The ID field is automatically populated after you save your work. Click Add again to add more items. Click Save when you are done to save all the state entries.
    6. Generate editable list views for the County and City SmartObjects. Enter records for the County and City SmartObjects like you did for the State SmartObject. Use the images below for reference. Be sure to enter the State ID and County ID values as shown so that you create a relationship between SmartObject records.
      County editable list view

      City editable list view

Configure the cascading drop-down list controls

In this step you design a view with Drop-Down List controls for each of the State, County, and City SmartObjects. Then you configure the County and City controls to show data based on the State and County control values, respectively.

  1. In this step, you create an item view that you use to set up the cascading drop-down list controls. Right-click your category and select New View. Name the view Cascading Drop-Down Lists.
    1. In K2 Designer, right-click your category and select New View.
    2. Name the view
      Cascading Drop-Down Lists
      and confirm the view type is Item View. You do not need to set the data source. Click Create.
  2. Click Create Layout Table Only and set it for three columns and three rows. Add a drop-down list control to each of the three cells in the second row. Rename each control as follows: Drop-Down State, Drop-Down County, and Drop-Down City. Add a label control to each of the three cells in the first row, then rename the labels to match their corresponding drop-down list controls: State, County, and City.
    Cascading Drop-Down Lists
    1. Click Create Layout Table Only and set the layout for three columns and three rows. Click OK.
    2. From the Toolbox, drag a Drop-Down List control into each of the three cells in the middle row. In the Properties pane on the right-side of your screen, change the Name for each control as follows: Drop-Down State, Drop-Down County, and Drop-Down City.
    3. Add labels for each column. Drag a Label control from the Toolbox into each of the three cells in the first row. Change the Name and Text properties for each appropriately.
  3. Configure data sources for each drop-down list control using the table below for reference.
    ControlNotes
    Drop-Down State
    • Associate the control with the State SmartObject.
    • Confirm the value is set to ID and the display is set to [State Name].
    Drop-Down County
    • Associate the control with the County SmartObject.
    • Confirm the value is set to ID and the display is set to [County Name].
    • Enable filtering.
      • Set the Parent Control to Drop-Down State.
      • The Parent Join Property should default to ID.
      • Set the Child Join Property to StateID.
    Drop-Down City
    • Associate the control with the City SmartObject.
    • Confirm the value is set to ID and the display is set to [City Name].
    • Enable filtering.
      • Set the Parent Control to Drop-Down County.
      • The Parent Join Property should default to ID.
      • Set the Child Join Property to CountyID.
    1. Next, you associate each drop-down list control with its corresponding data source, then configure filters to create the cascading effect. Select the Drop-Down State control, and click the Type ellipsis under the Data Source heading to open the data source editor.
    2. On the Configure Data Source screen, select the Use a SmartObject as data source option, then click the ellipses to set the SmartObject. Select State and click OK.
    3. Confirm Value defaults to ID and Display defaults to [State Name]. Click OK to save your data source settings.
    4. Select the Drop-Down County control and open the data source editor.
    5. Select the Use SmartObject as data source option, and select the County SmartObject. Confirm the value defaults to ID and the display defaults to [County Name]. Do not close this screen just yet.
    6. Scroll down to the bottom of the screen and check the option to Filter the data according to another control's value. For the Parent Control, use the drop-down list to select the Drop-Down State control. (Remember, you want to filter the counties based on which state is selected.) The Parent Join Property automatically becomes the SmartObject's ID property, since this is the unique value for each record. For the Child Join Property, select StateID from the drop-down list. To recap, you are filtering the counties where the StateID value in the County SmartObject equals the ID value in the State SmartObject. Click OK.
    7. Select the Drop-Down City control and open the data source editor. Once again, select the Use a SmartObject as data source option and select the City SmartObject. Check the option to filter the records. For the Parent Control, select Drop-Down County. For the Child Join Property, select CountyID. Click OK.
    8. Click Finish to save and exit the view.
  4. Run the Cascading Drop-Down Lists view. Select a state; the county control displays associated counties. Select a county; the city control displays associated cities.
    1. Right-click the Cascading Drop-Down Lists view and select Run.
    2. Before you select a state, notice that the Drop-Down County and Drop-Down City controls do not display any list items. Select a state from the Drop-Down State control. You should see values in the Drop-Down County control. Select a county and confirm you see cities in the Drop-Down City control.
Review

Use the filter option when configuring a data source for a drop-down list control to limit the data shown in the control based on a selection in another control.
